TPC40-115-T3
Zero-point positioning pallets
Applicable to KSZ series zero point positioning
Made of steel and aluminum alloys
Product Information
Structural principle
Application
Accessories
Downloads
Product Information
| Notice: | – |

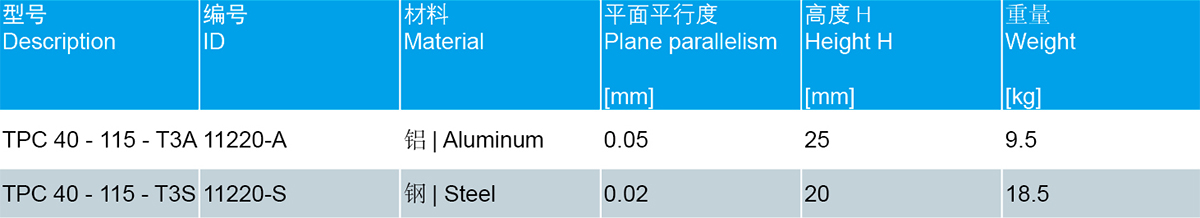

| Scope of delivery: | 1 x TPC 40 – 115 – T3 |
| 1 x DCPA-40: Clamping Studs | |
| 1 x DCPB-40: Clamping Studs | |
| 1 x DCPC-40: Clamping Studs |
Structural principle
| Our positioning method adopts conical positioning, which is a stable and reliable positioning method at the same time. The end face of the chuck is vertically configured, and the large plane of the chuck brings excellent plane accuracy. Both the cone and the end face are bonded together for excellent repeatability. |
Application
| Model | DCPA-40 | DCPB-40 | DCPC-40 |
| Product photos |  |  |  |
| Product description | |||
| Form factor | Φ40*45 | Φ40*45 | Φ40*45 |
| Clamping force | Suitable for zero positioning KSZ-88/KSZ90 | ||
| Drive pressure/torque | 60 N.m | 60 N.m | 60 N.m |
| Common features | . Positioning, fixing and clamping in one operation . Change workpieces and fixtures in seconds . The workpiece is clamped directly . Stainless steel version . Suitable for conventional machines and medium cutting . All WARWICK clamping modules can be used | ||
| Differential characteristics | . Can only be used to determine the origin of a coordinate system positioning . DCPA23 can only use 1pcs for positioning in a single fixtures | . Double-head workstation and above . DCPB23 can only use 1pcs for direction in a single fixtures | . Three-head workstation and above . DCPC40 have no quantity limited in a single fixtures |
 |  |  |  |
| 5-axis machining center | 4-axis machining center | Horizontal machining center | Vertical machining center |
