WARWICK workholding Simple, Cheap and Reliable

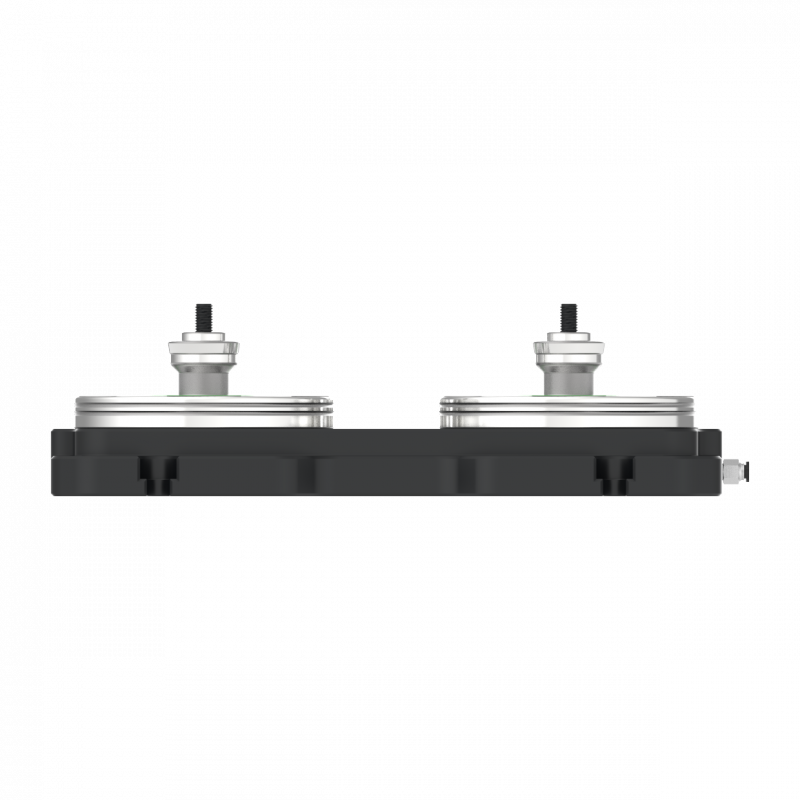

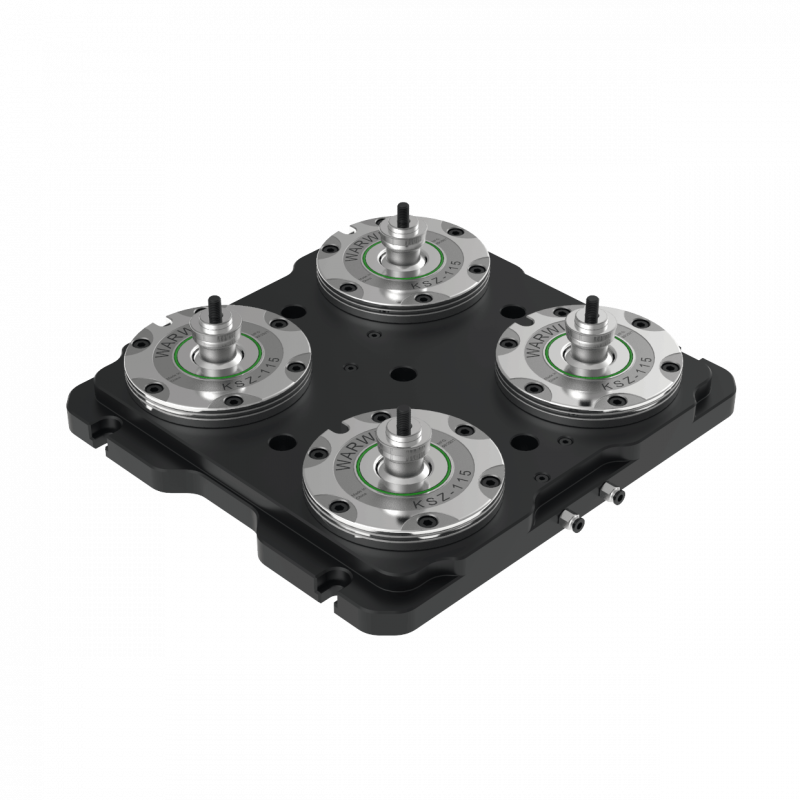

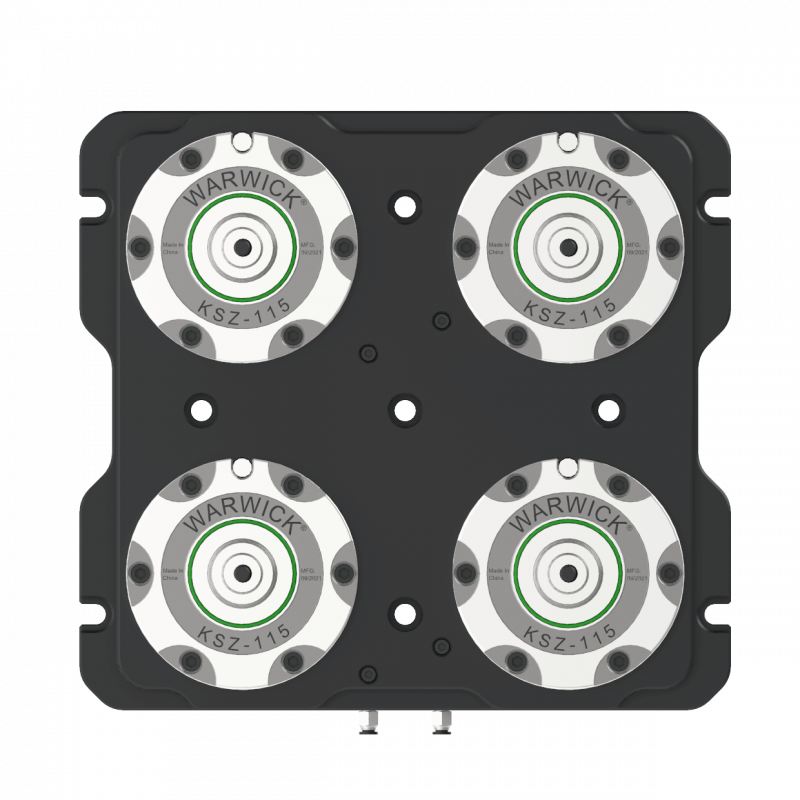

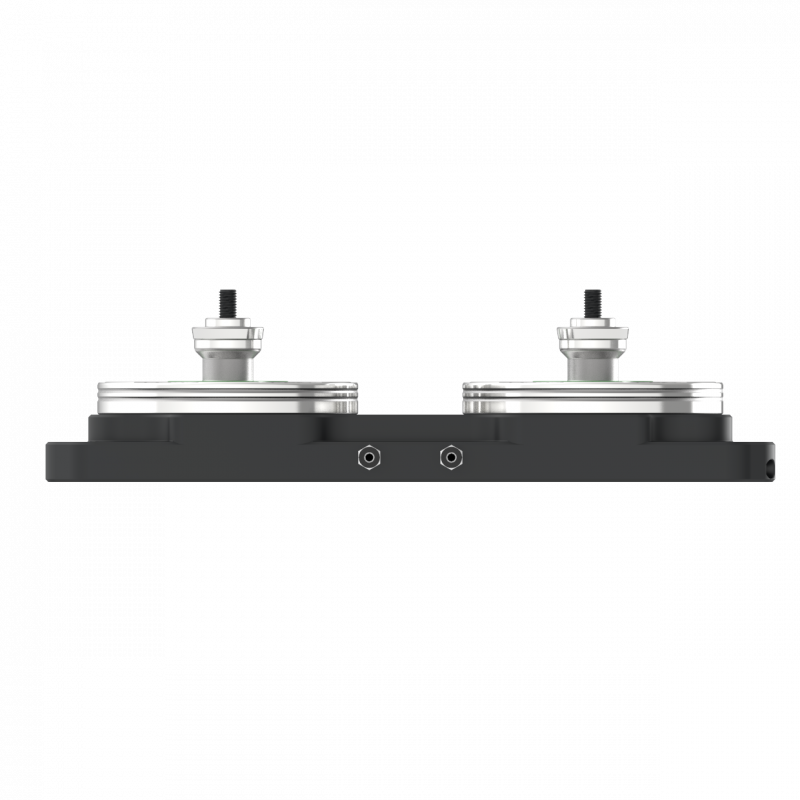

KSZ115-T4
It is unlocked by air pressure.
The positioning method is double-sided lamination of the conical surface and the end face.
The main parts of the positioning chuck are made of stainless steel.

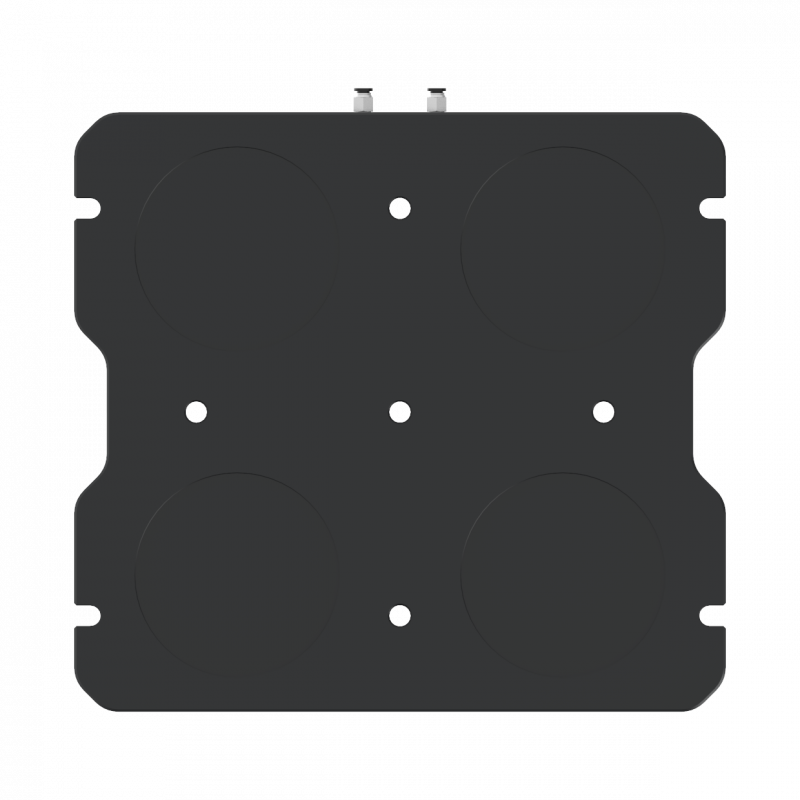

The bottom plate is made of high-quality carbon steel, which is oxidized and blackened to prevent rust.
Product Information
Structural principle
Application
Accessories
Downloads
Product Information

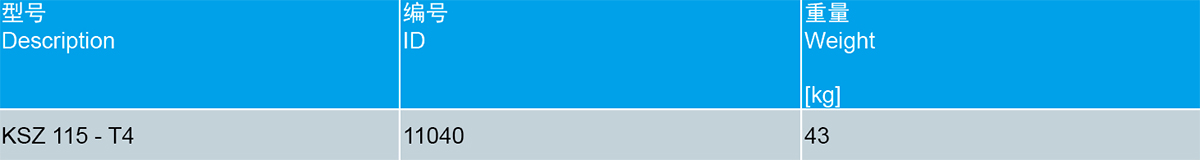

| Notice: | – |
| Scope of delivery: | 1 x KSZ115-T4 |

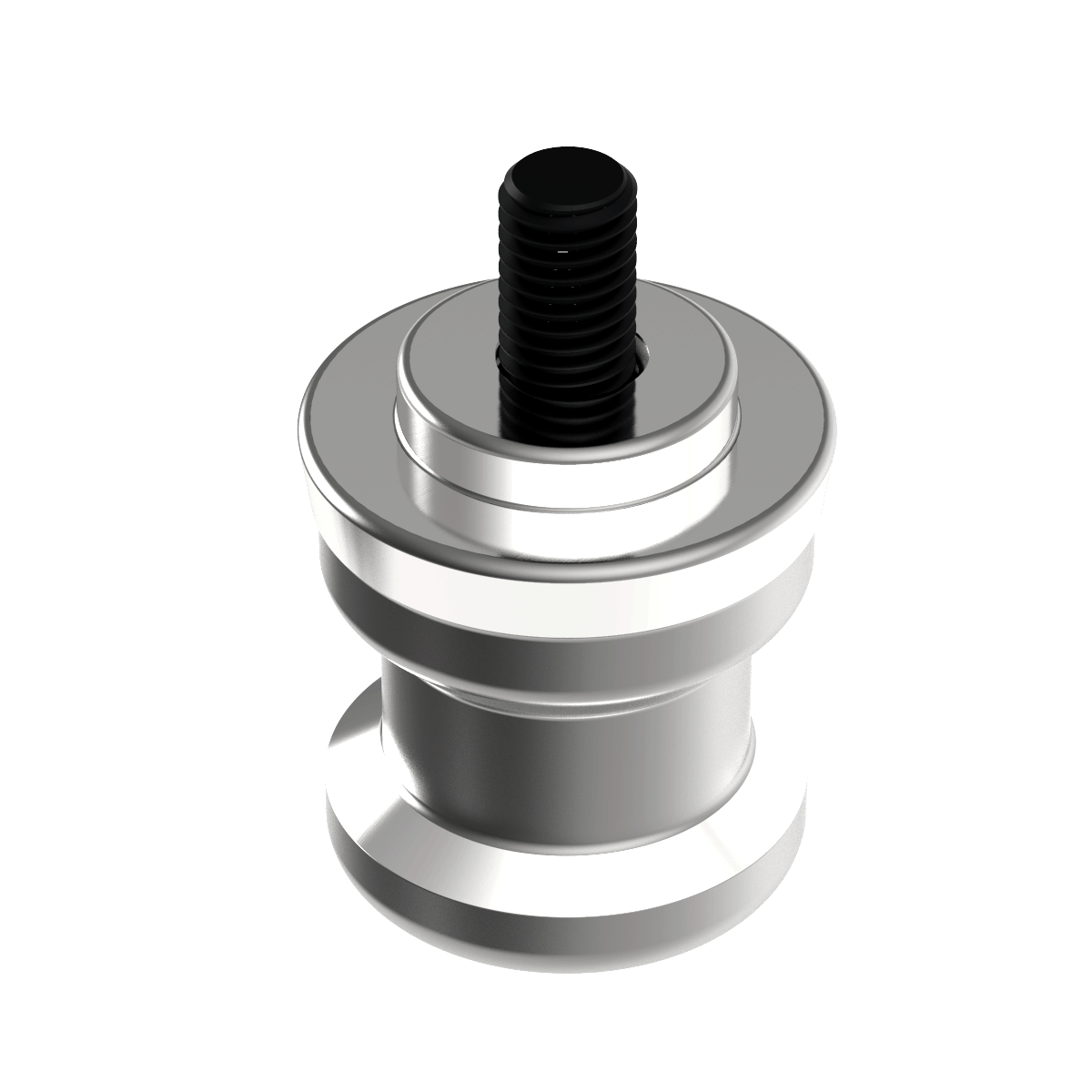

| 1 x DCPA-40: Clamping Studs | |

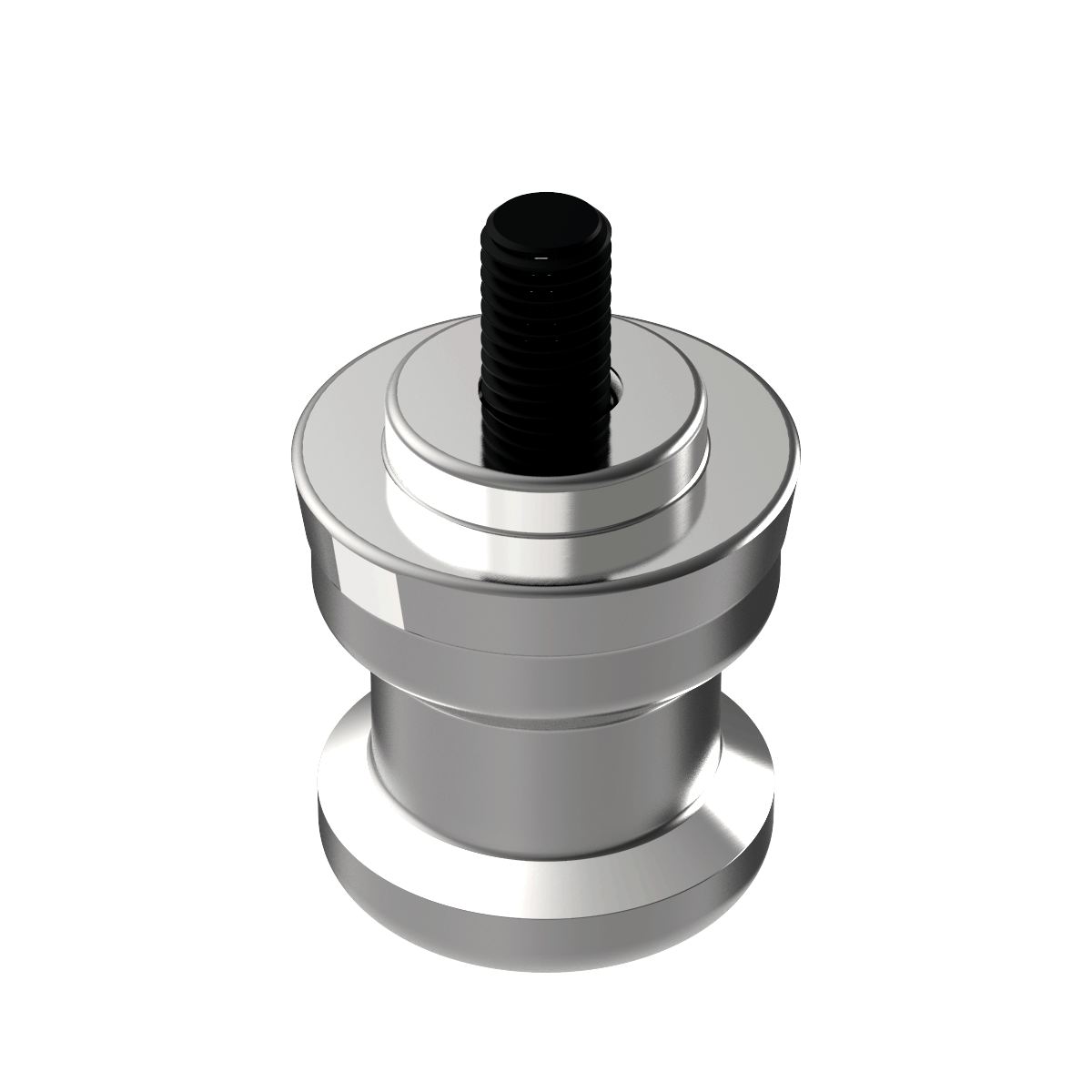

| 1 x DCPB-40: Clamping Studs | |
| 2 x DCPC-40: Clamping Studs |

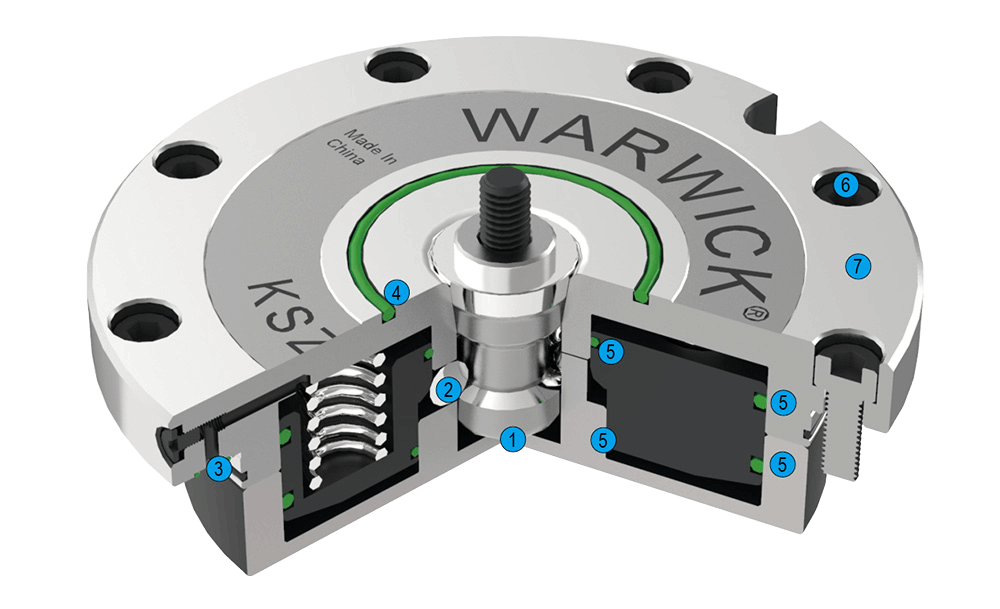

Structural principle
| 1. Air flow is ejected from the center to protect the replacement interface from coolant, dust and debris |
| 2. Patented structural drive system provides extremely high pull-down force between the piston and the steel ball |
| 3. Continuous flow of compressed air increases the pulling force |
| 4. Flat seal to protect the interface during machining Dampens the deposition of the workpiece or clamping pallet |
| 5. Completely sealed system Therefore absolutely maintenance-free |
| 6. Large flat surfaces for best support and highest rigidity |
| 7. Lower-lying countersunk screws For easy cleaning of the flat surface |
| Our positioning method adopts conical positioning, which is a stable and reliable positioning method at the same time. The end face of the chuck is vertically configured, and the large plane of the chuck brings excellent plane accuracy. Both the cone and the end face are bonded together for excellent repeatability. |
Application
 |  |  |  |
| 5-axis machining center | 4-axis machining center | Horizontal machining center | Vertical machining center |
Accessories
 |  |  |

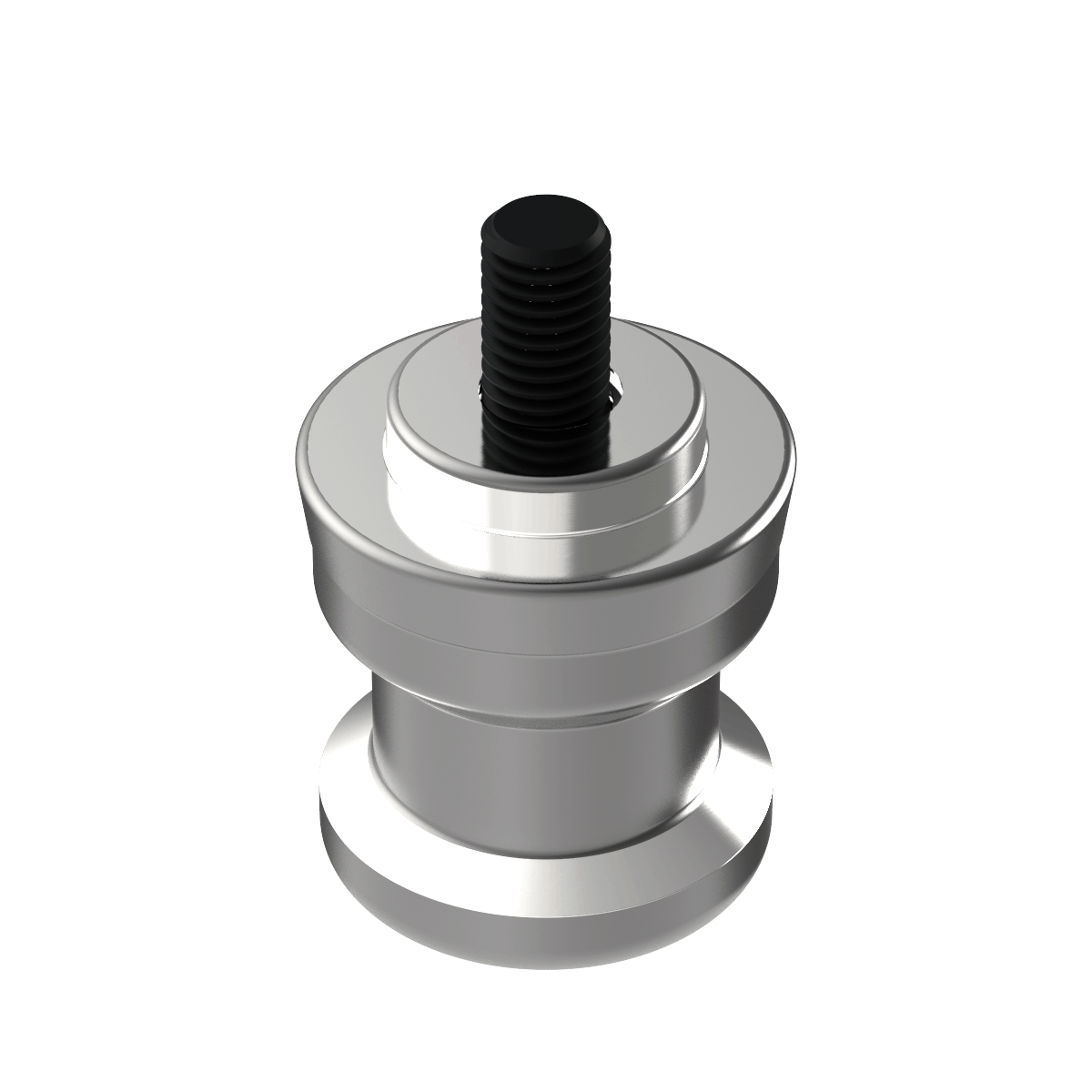

| DCPA-40 | DCPB-40 | DCPC-40 |
 |  |  |

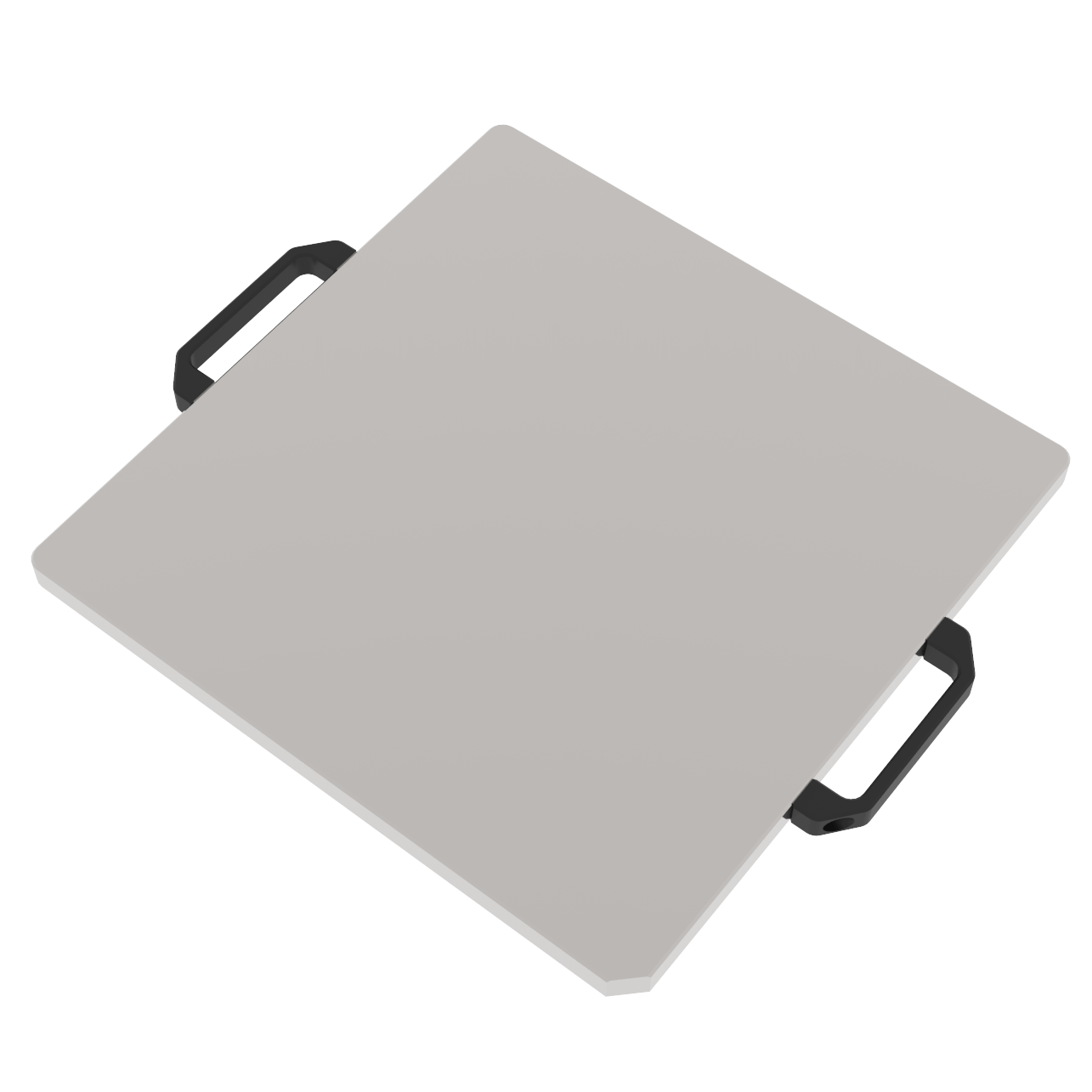

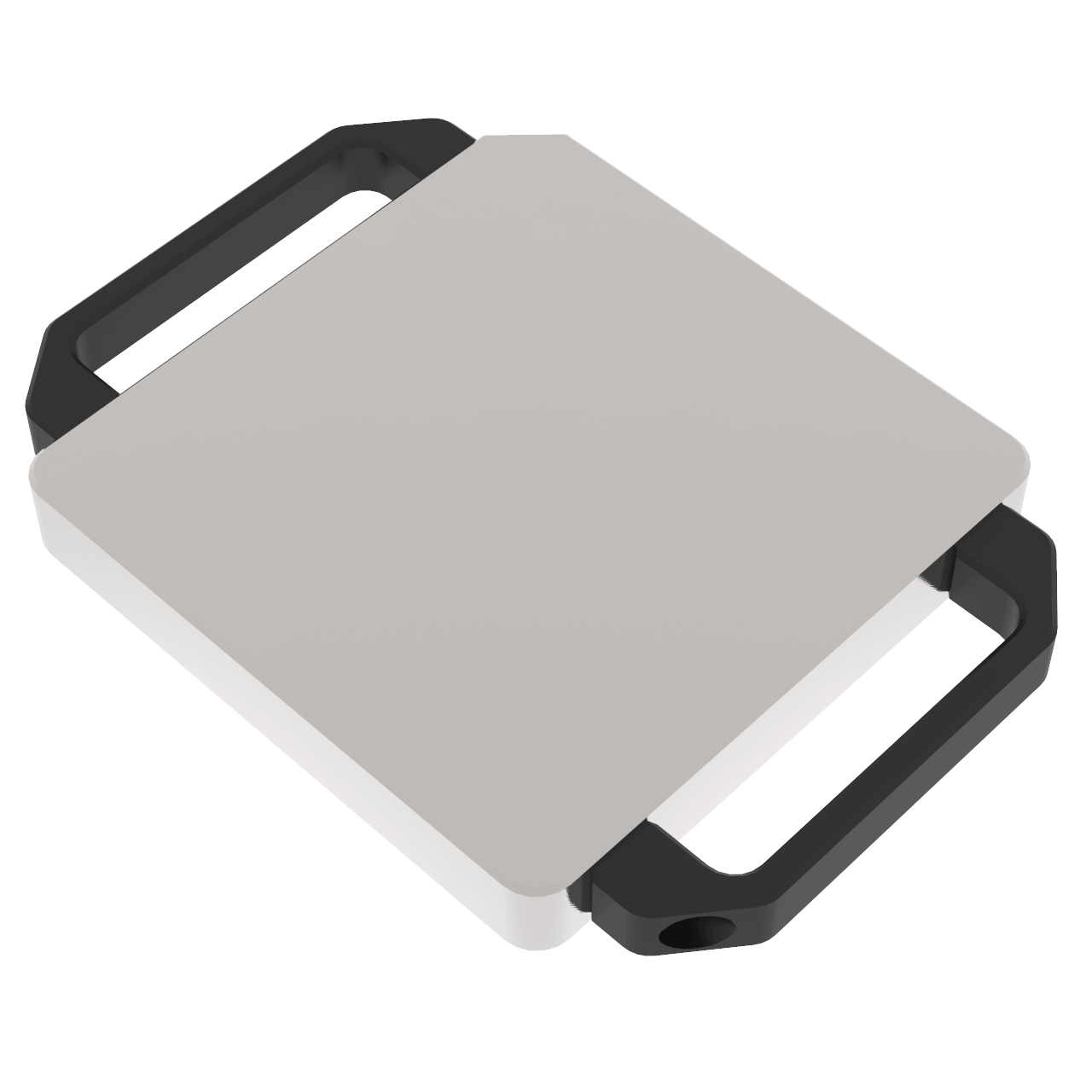

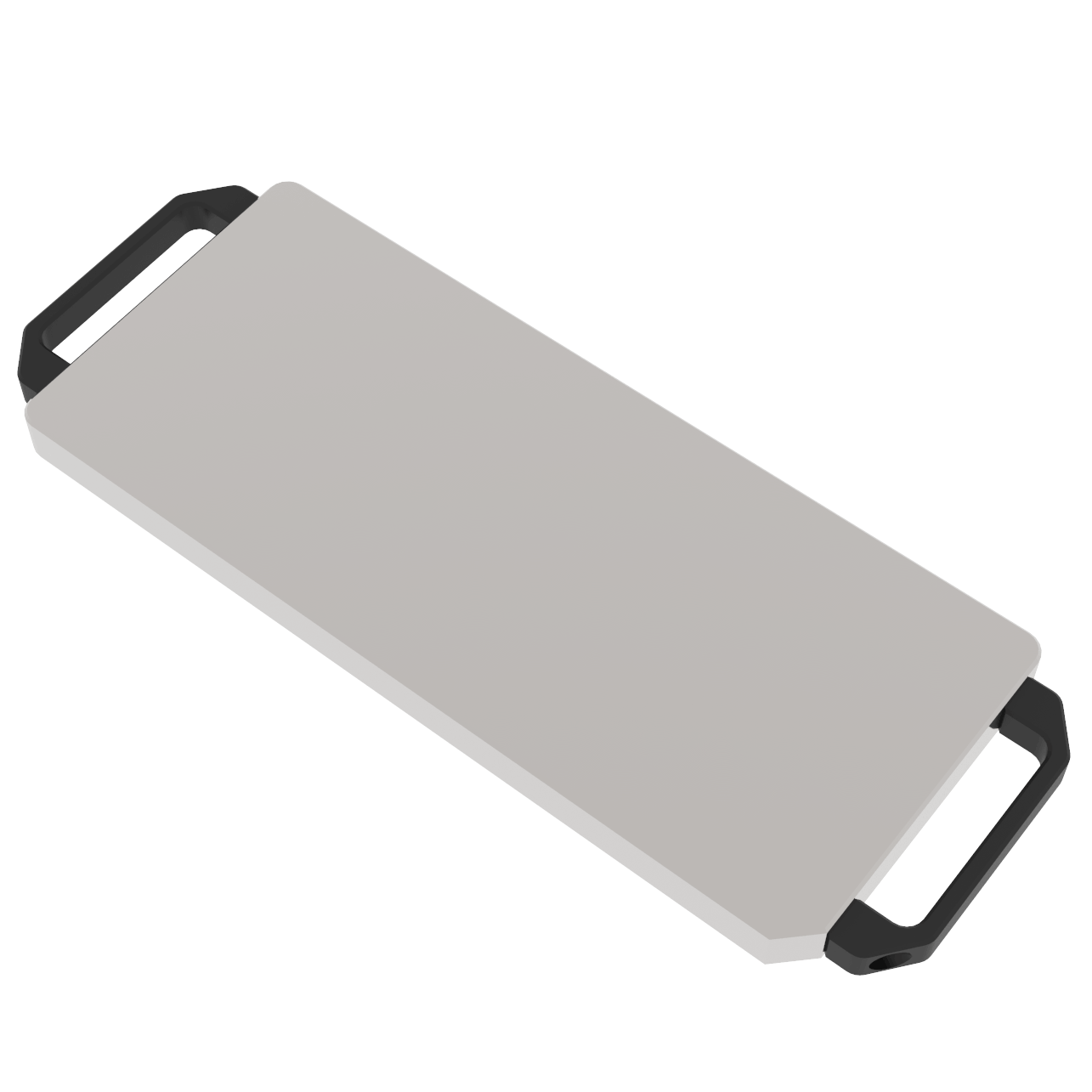

| TPC40-115-T1A | TPC40-115-T2A | TPC40-115-T4A |
 |  |  |

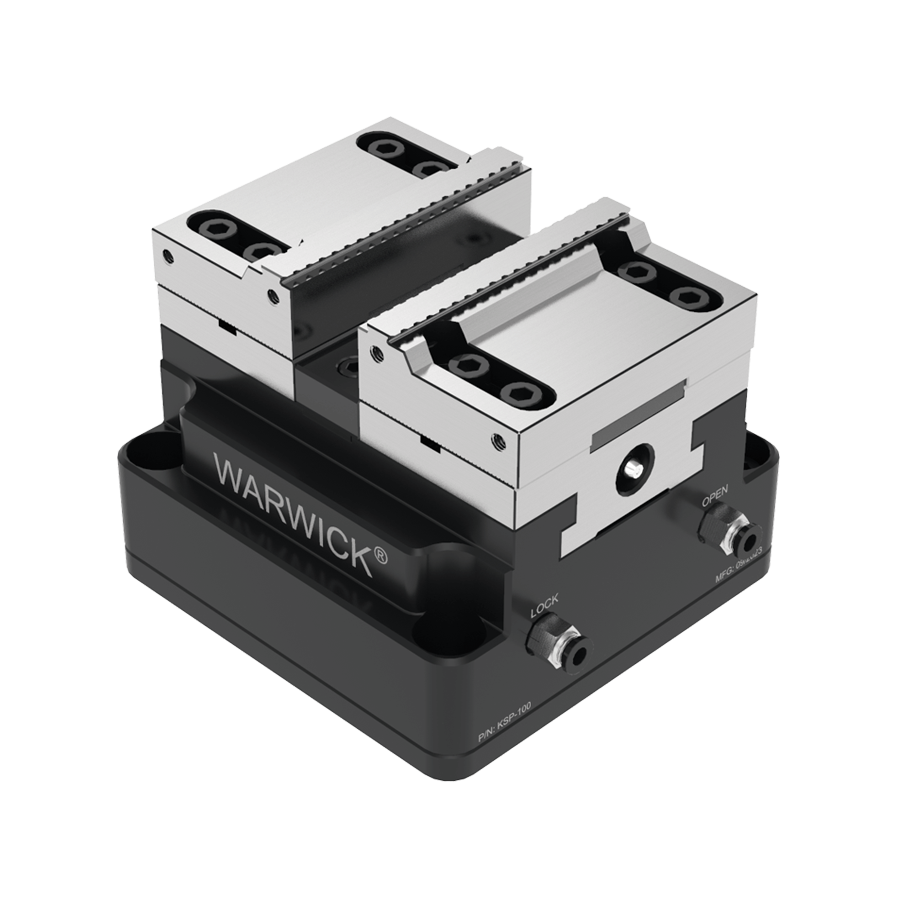

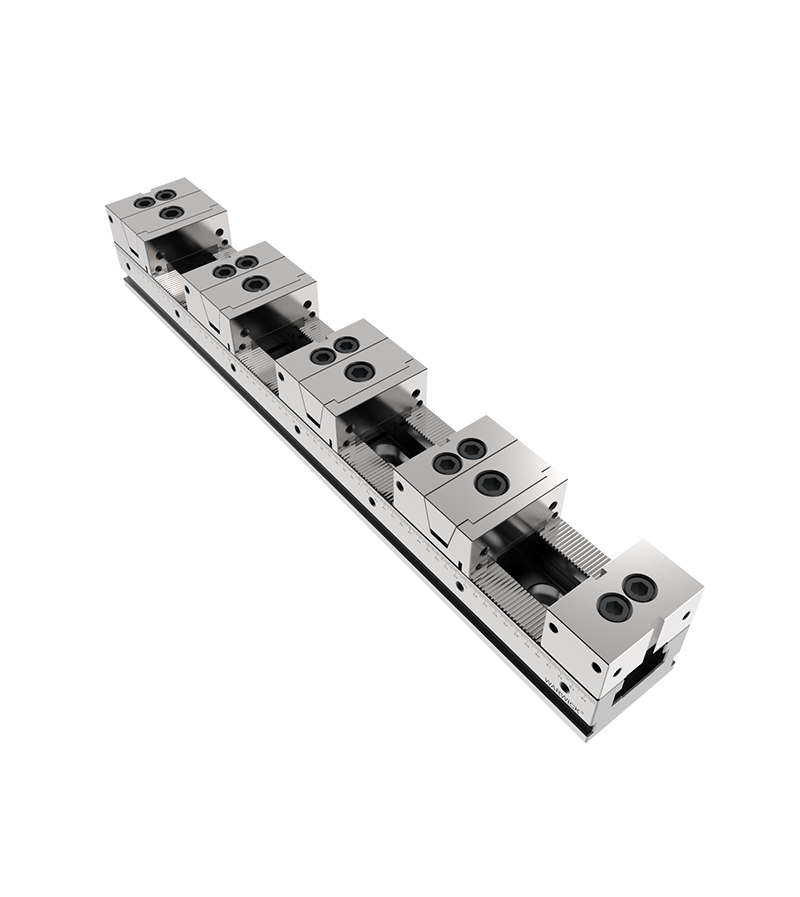

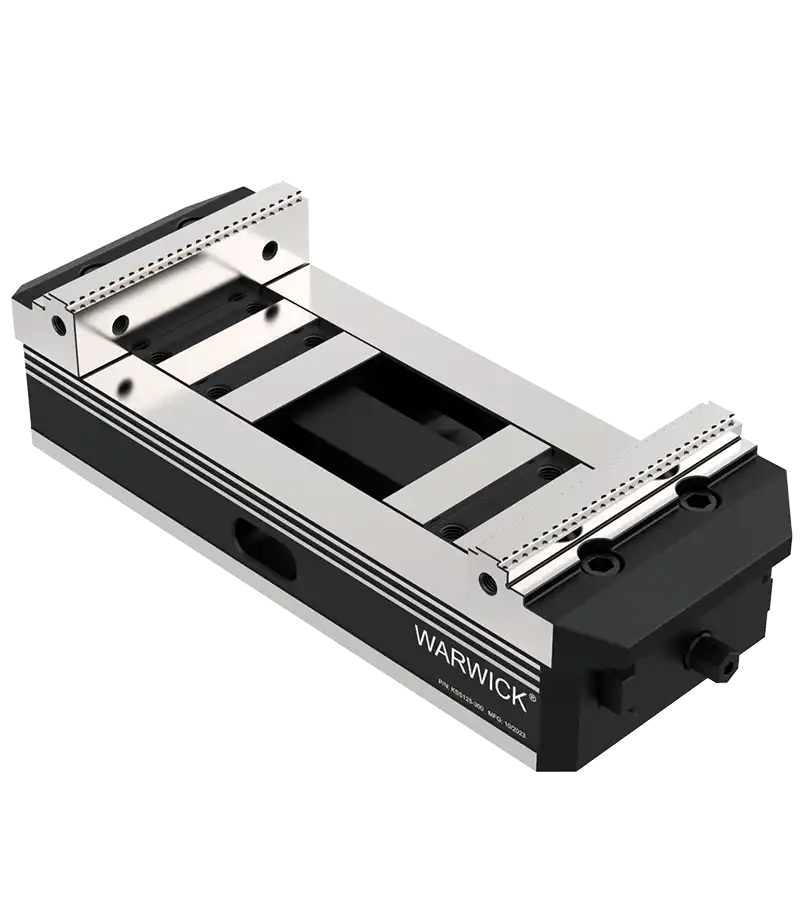

| KSP series | KSS series | KSD series |
