WARWICK workholding Simple, Cheap and Reliable
KSS125-300
WARWICK manual self-centering vises are designed with a low height to ensure high clamping accuracy and stable clamping force.
The pre-tensioned and backlash-free center bearing ensures repeatability up to ±0.02 mm and enables roughing and finishing of parts in just one clamping system.
The integrated chip evacuation and specially protected spindle provide maximum process safety and vise stability.
Product Information
Structural principle
Application
Accessories
Downloads

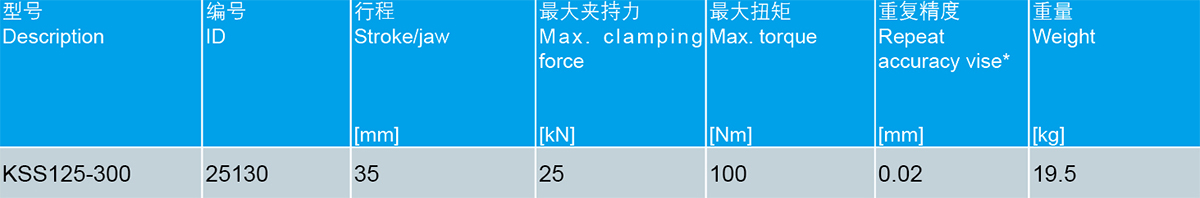

Product Information
Drawing
| Notice: | – |
| Scope of delivery: | 1 x KSS125-300 |
| 1 x Wrench |
Structural principle
| 1.Drainage slots |
| For coolant and chips |
| 2.Spindle drive |
| For highest clamping forces |
| 3.Long jaw guidance |
| Extended slide rails provide guaranteed stability and precision |
| 4.Ball bearing mounted, backlash-free spindle |
| For highest repeat accuracy |
| 5.Standard jaw interface |
| For use of standard system and top jaws made by WARWICK |
| 6.Applicable to zero point positioning system |
| KSZ-115 positioning pull nail interface |
| 7.Double encapsulated spindle |
| Provides optimum protection against coolant and chips |
Application

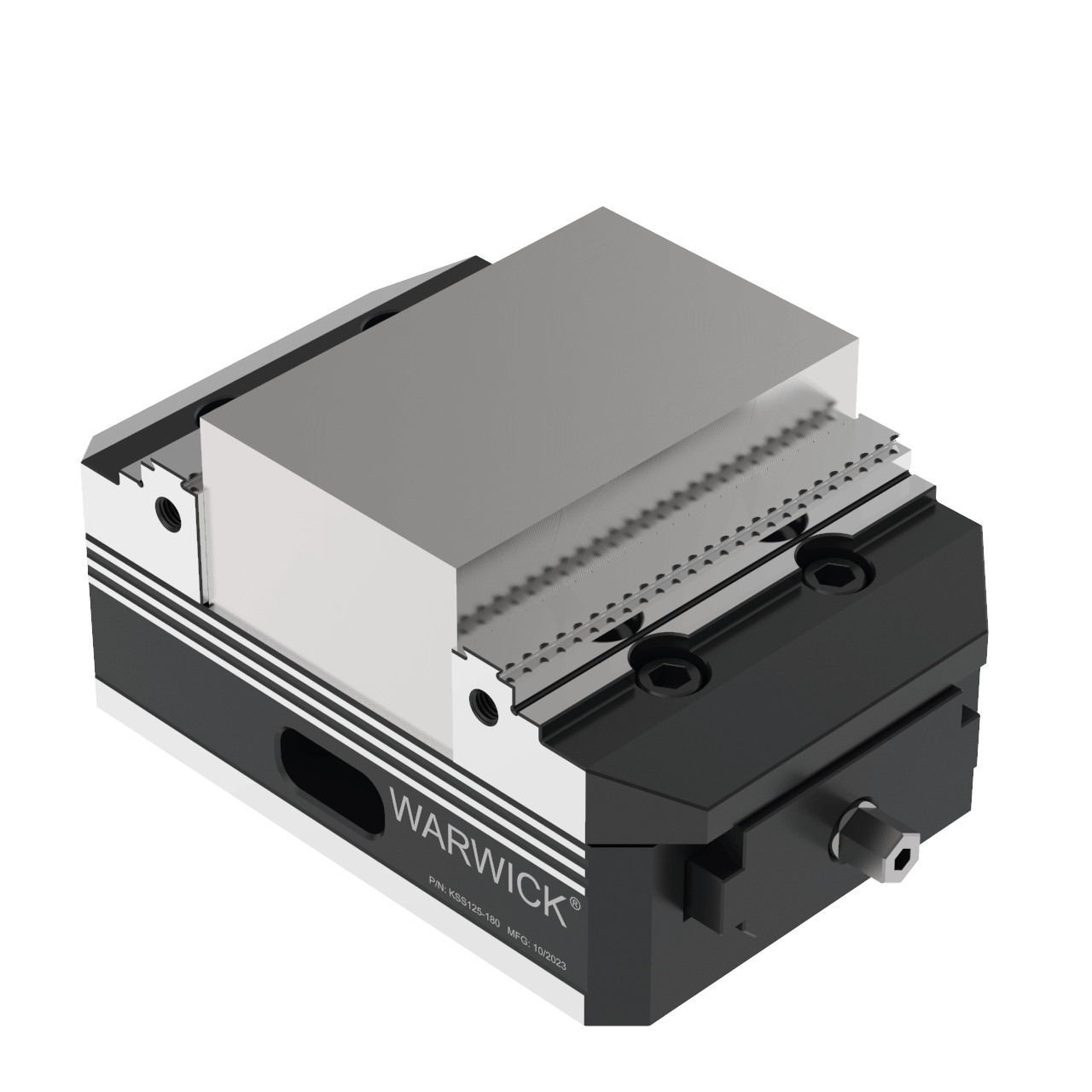

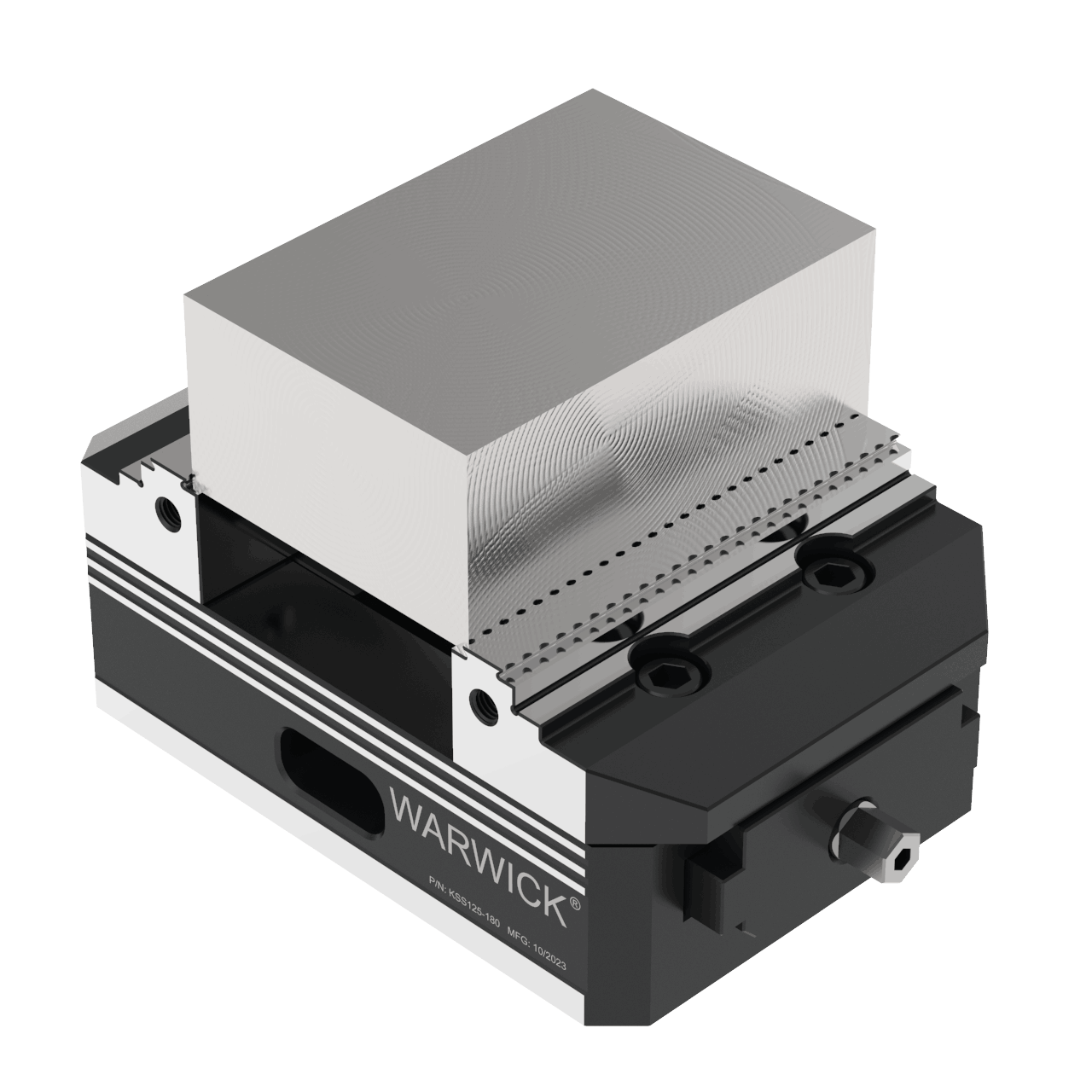

 | Roughing and finishing can be done without changing jaws |  |

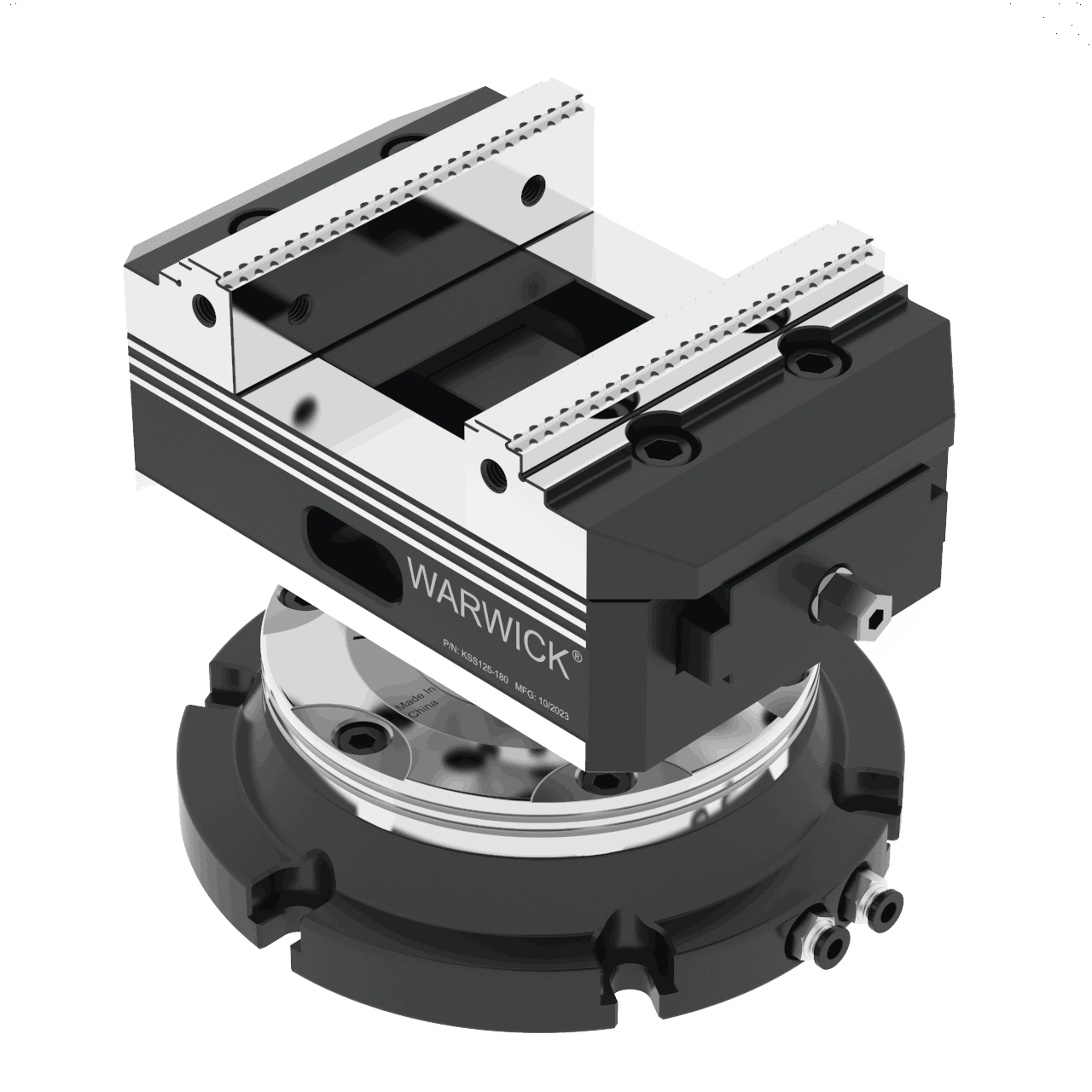

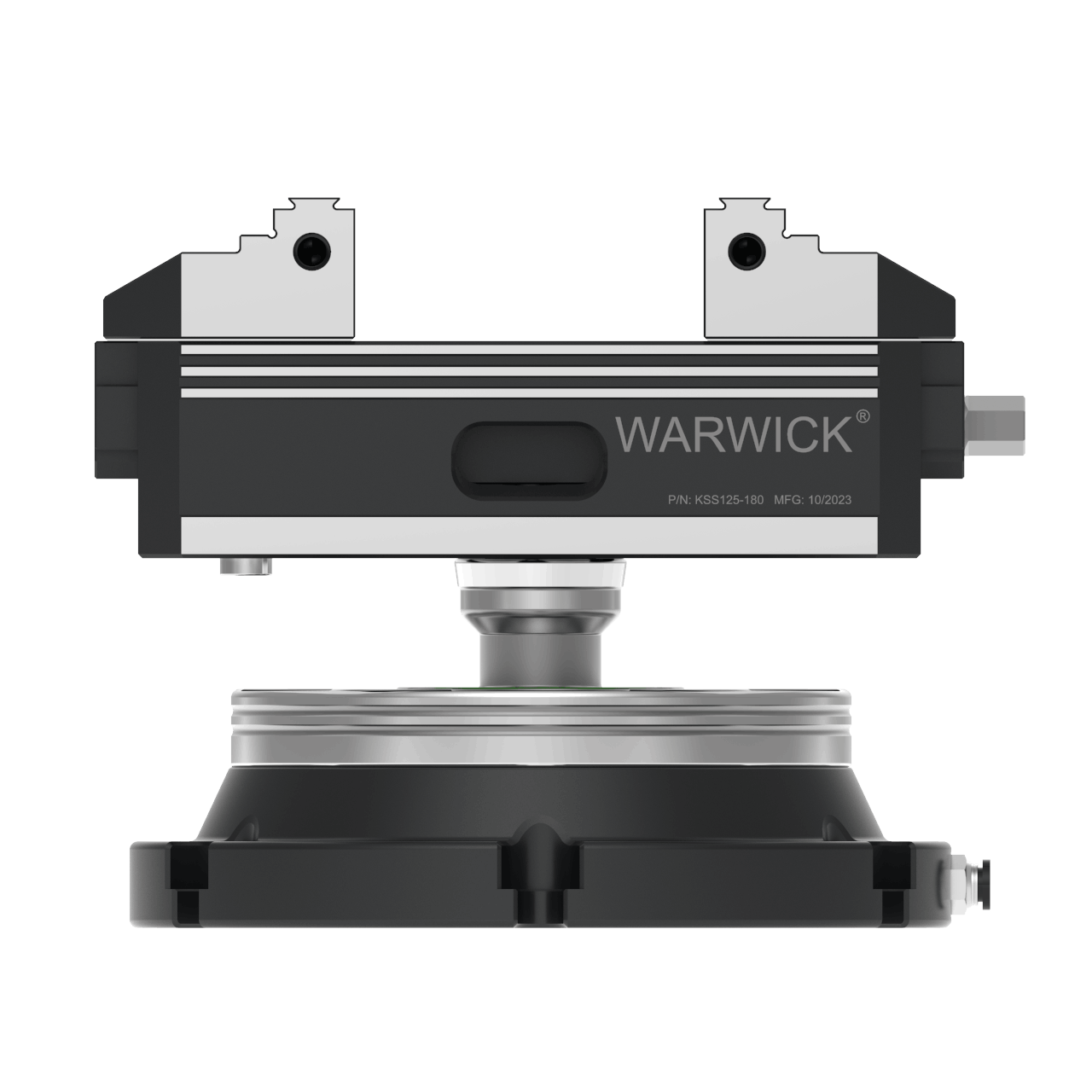

 | Integrated KSZ115 zero point positioning system interface |  |
 | Integrated interface to the LANG zero positioning system |  |
