WARWICK workholding Simple, Cheap and Reliable

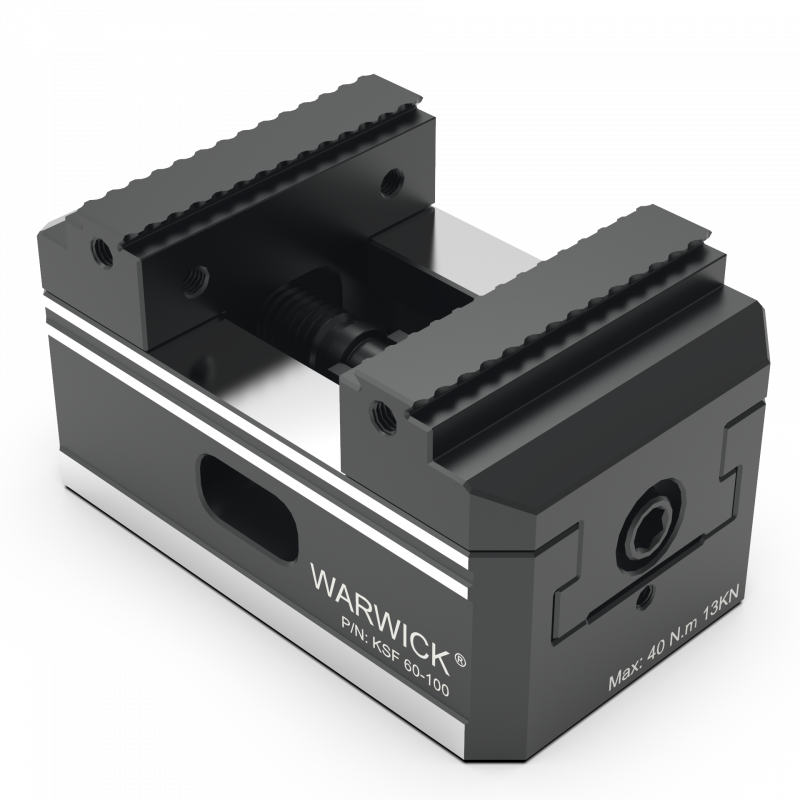

KSF60-100

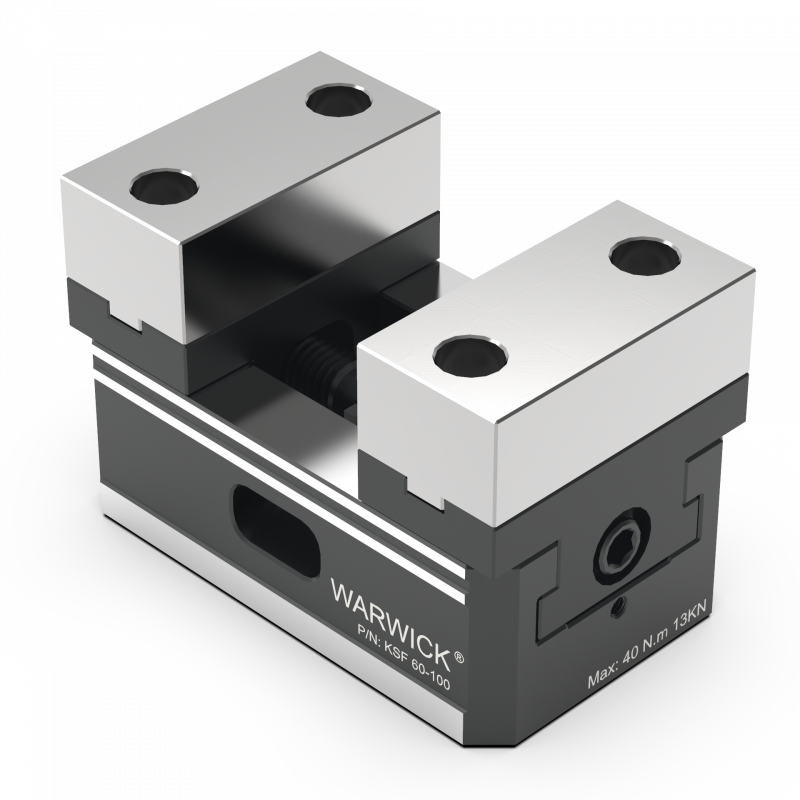

WARWICK Mechanical self-centering vises KSF series are our economical series vise. It has the function of adjusting the center positions.
The pre-tensioned and backlash-free center bearing ensures repeatability up to ±0.02 mm and enables roughing and finishing of parts in just one clamping system.

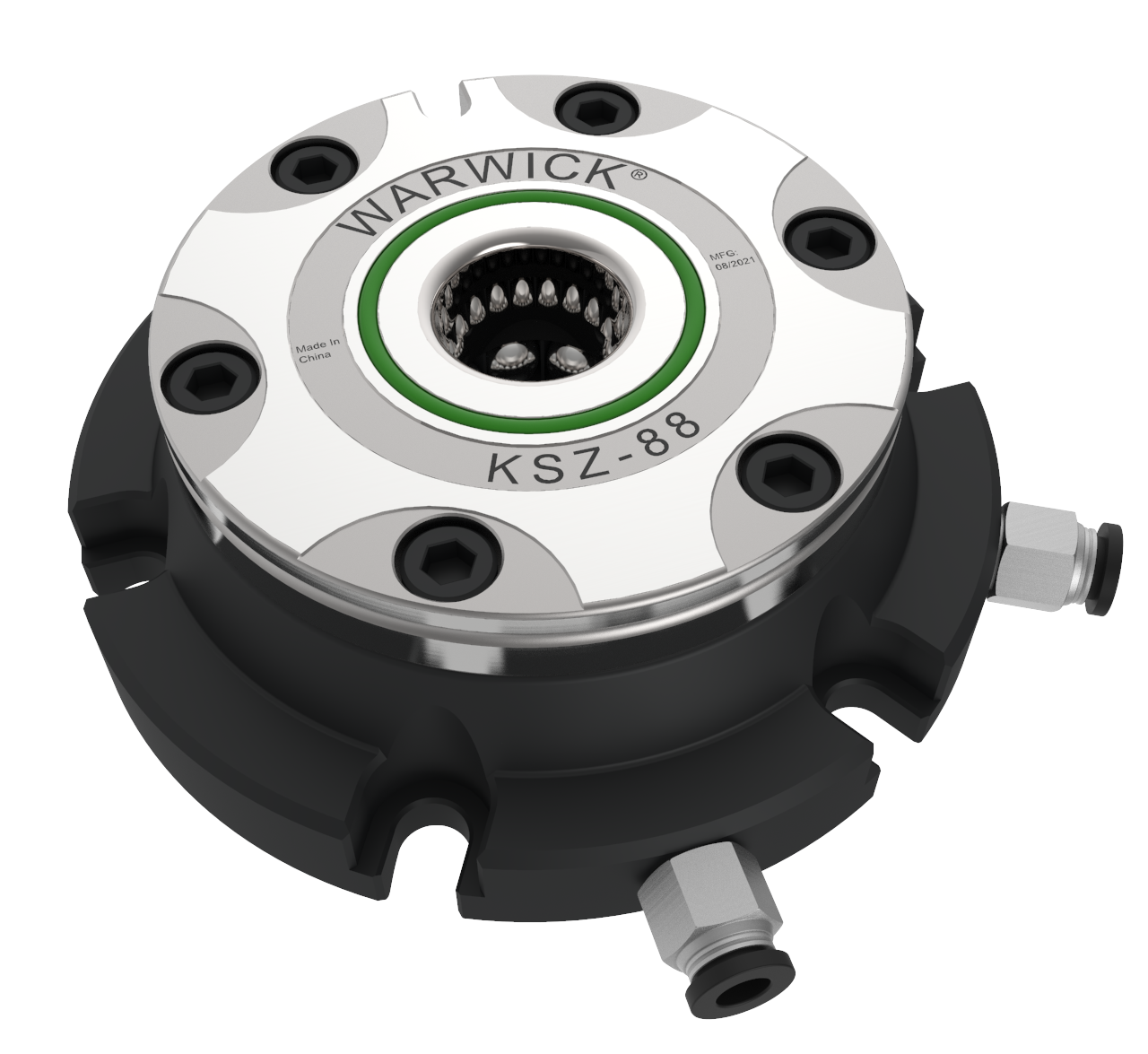

The KSZ88 series zero positioning interface is integrated with the KSF60-100 Vise.
Product Information
Structural principle
Application
Accessories
Downloads

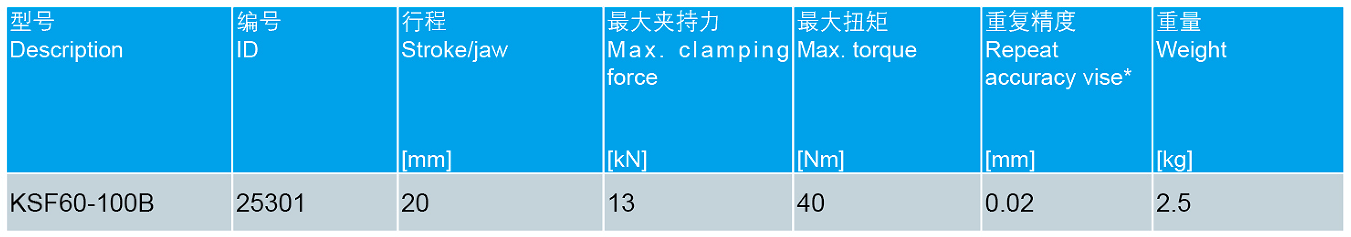

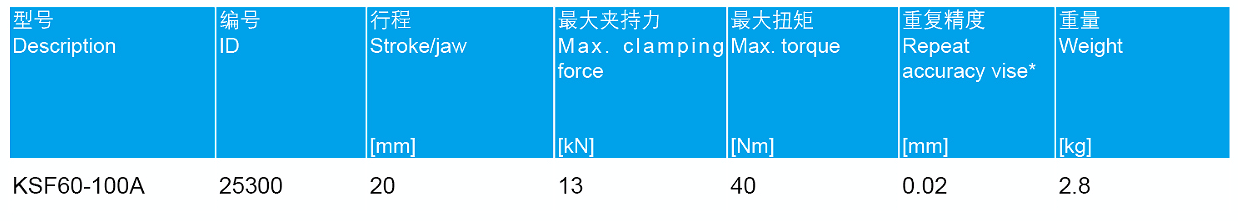

Product Information

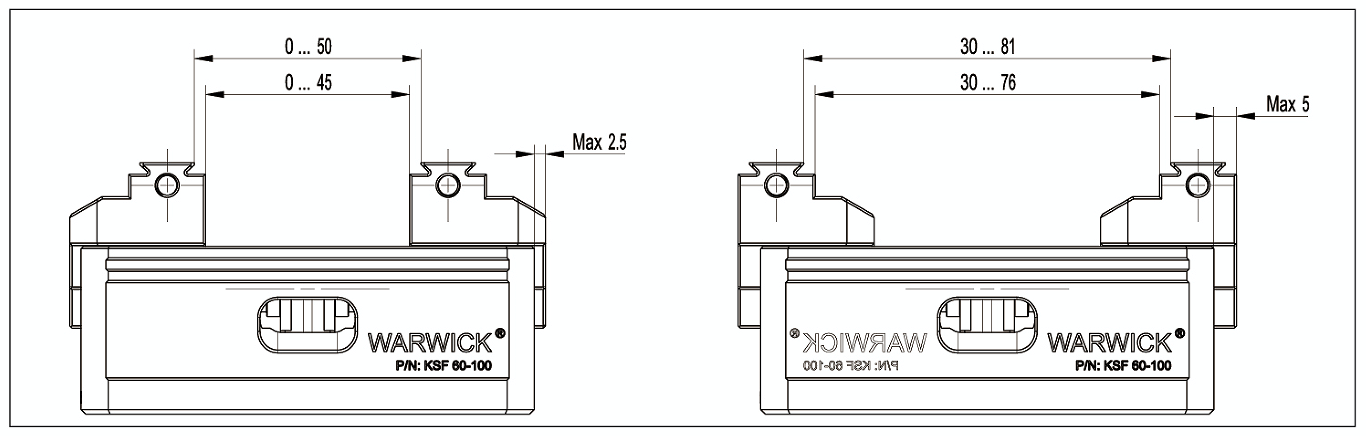

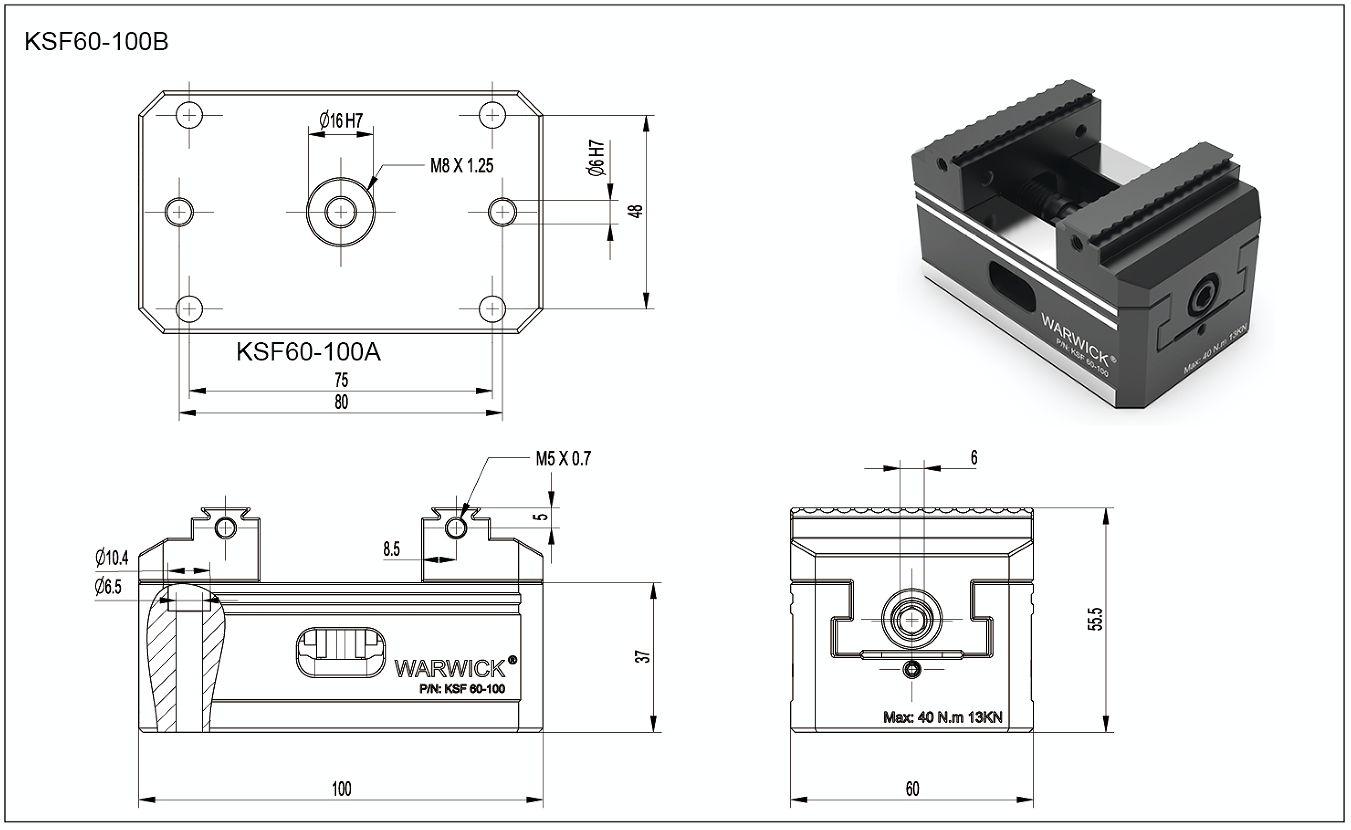

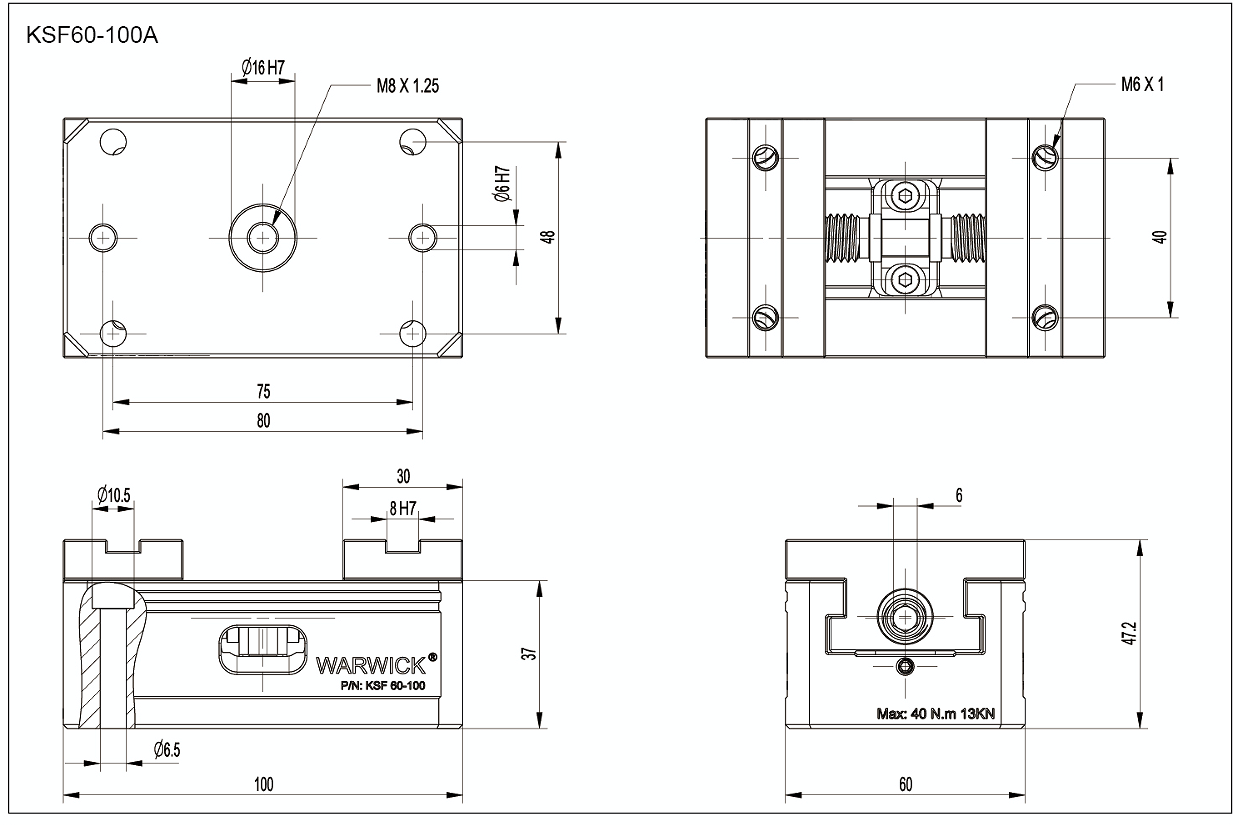

Drawing

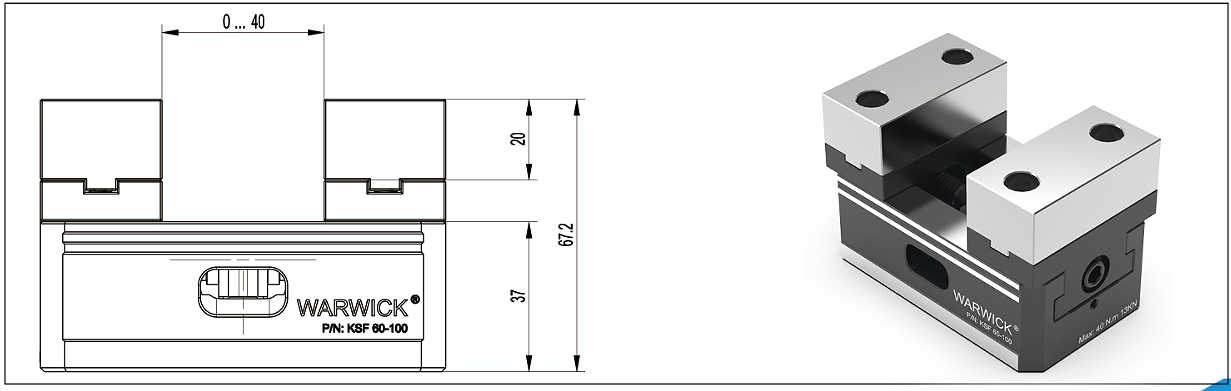

Drawing
| Notice: | – |
| Scope of delivery: | 1 x KSF60-100A or 1x KSF60-100B |
| 1 x Wrench |

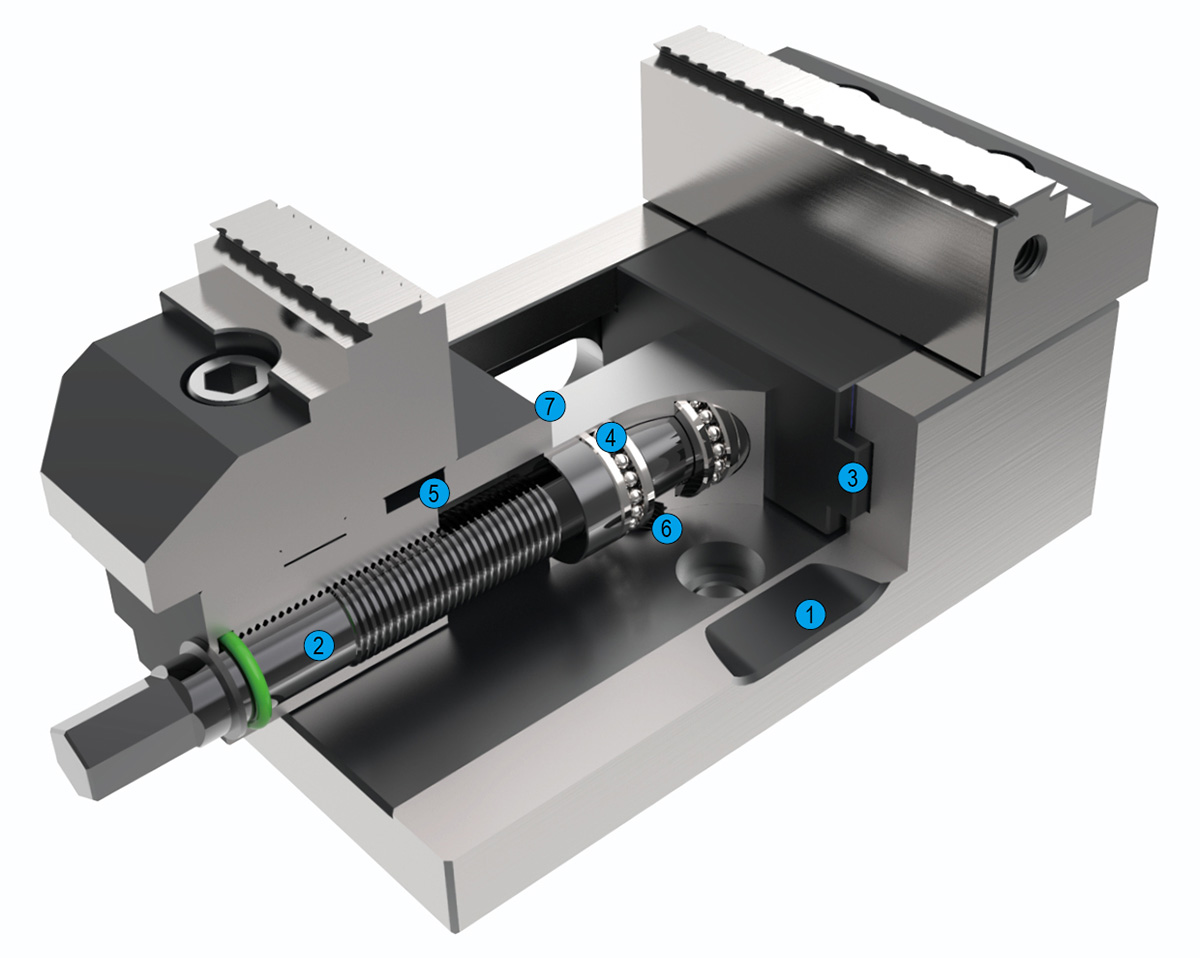

Structural principle
| 1.Drainage slots |
| For coolant and chips |
| 2.Spindle drive |
| For highest clamping forces |
| 3.Long jaw guidance |
| Extended slide rails provide guaranteed stability and precision |
| 4.Ball bearing mounted, backlash-free spindle |
| For highest repeat accuracy |
| 5.Standard jaw interface |
| For use of standard system and top jaws made by WARWICK |
| 6.Applicable to zero point positioning system |
| KSZ-115 positioning pull nail interface |
| 7.Double encapsulated spindle |
| Provides optimum protection against coolant and chips |
Application

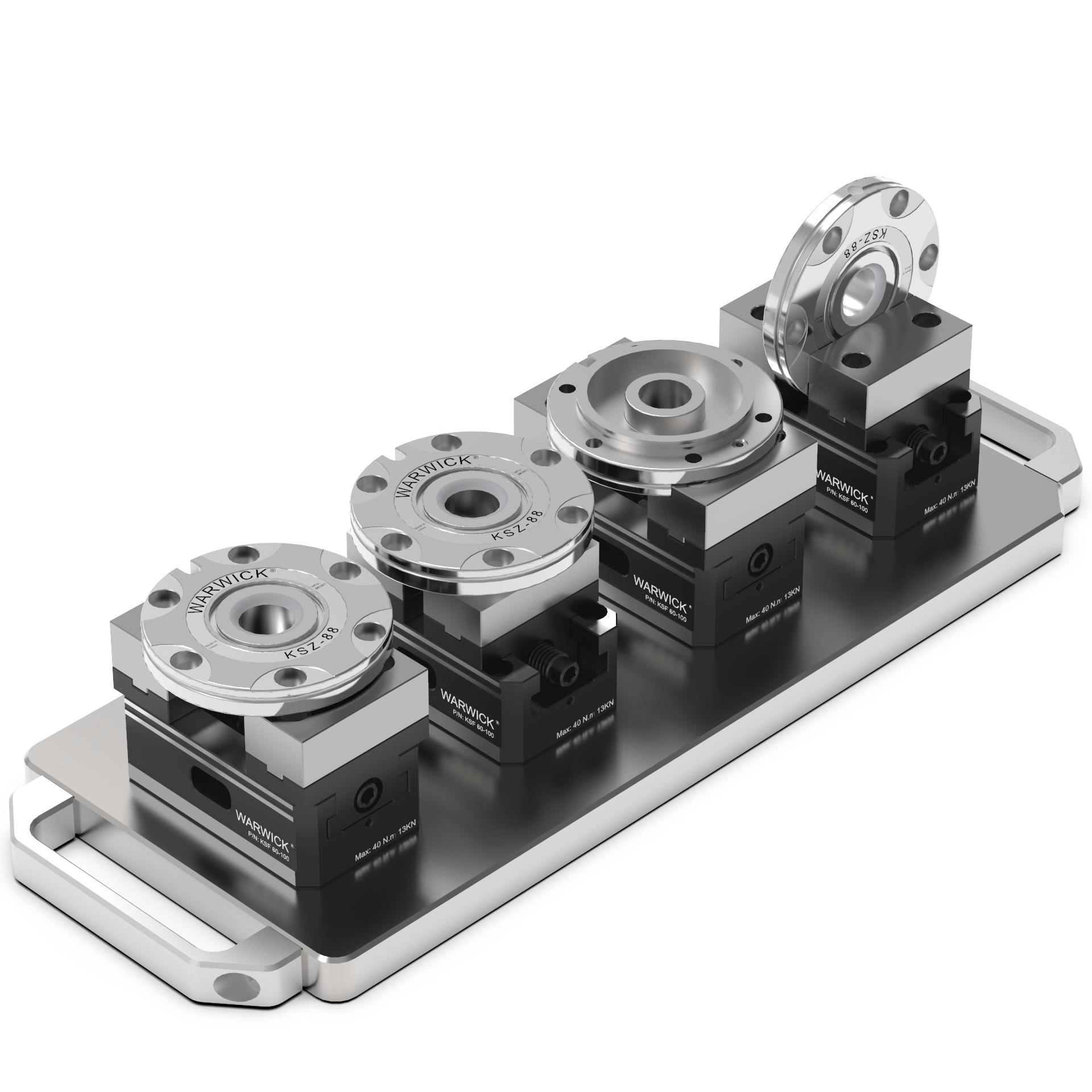

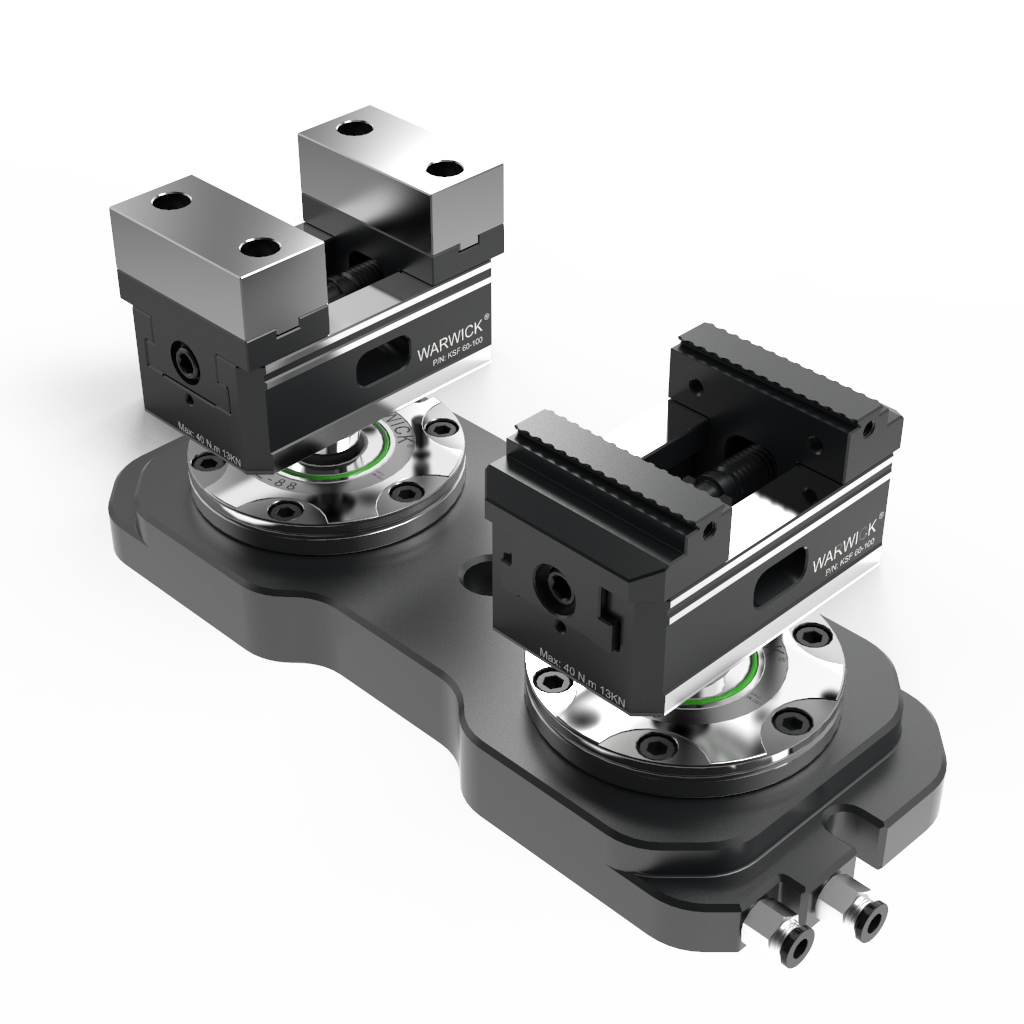

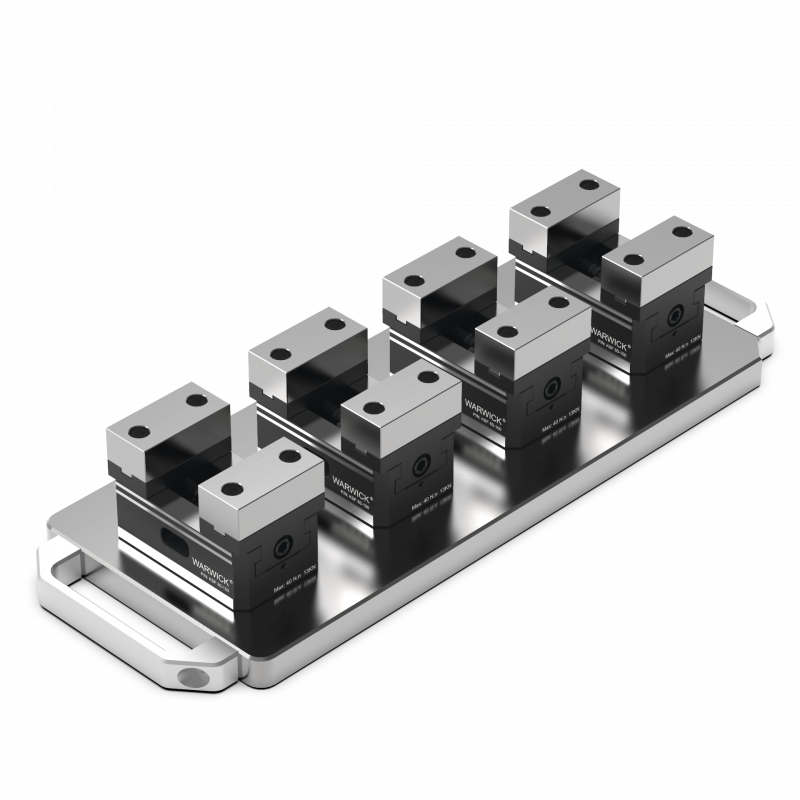

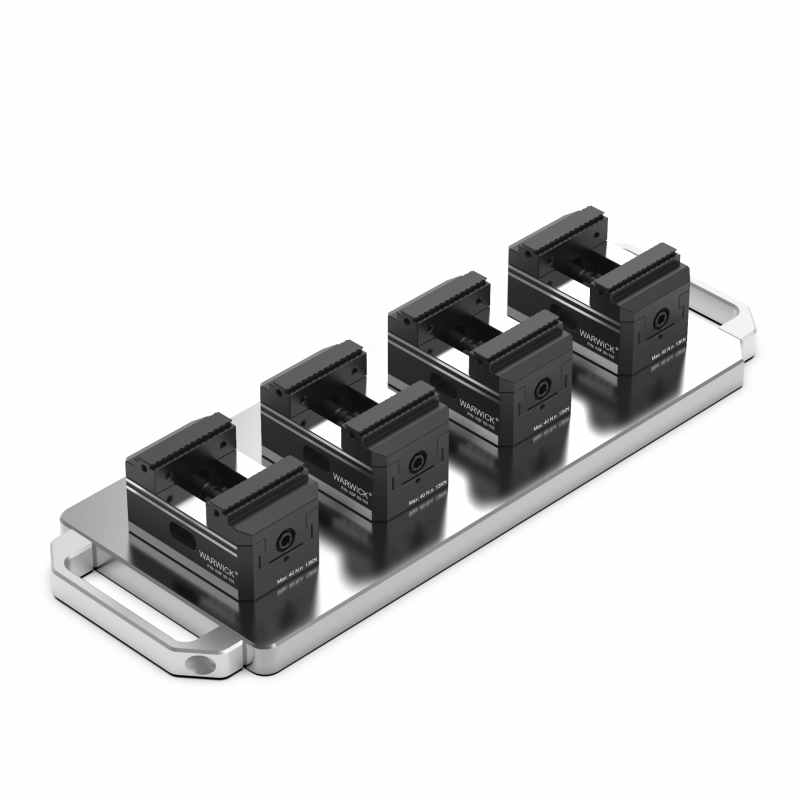

 | It can be used in combination with the WARWICK TPC23 series quick change plate and the KSZ90-T2 zero point positioning system to achieve multi-part clamping in a single setup or the clamping of elongated workpiece on CNC machine center. |  |

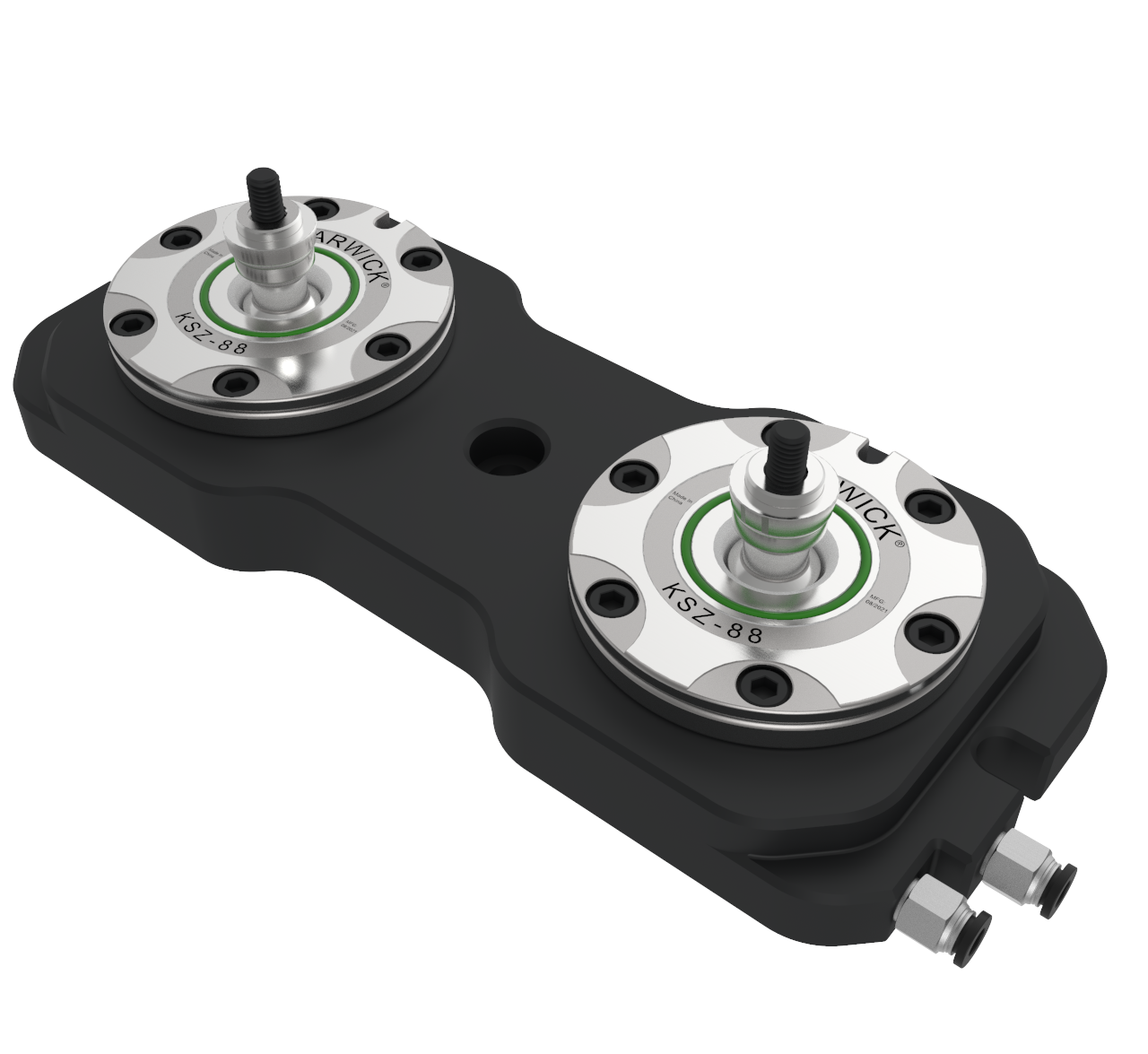

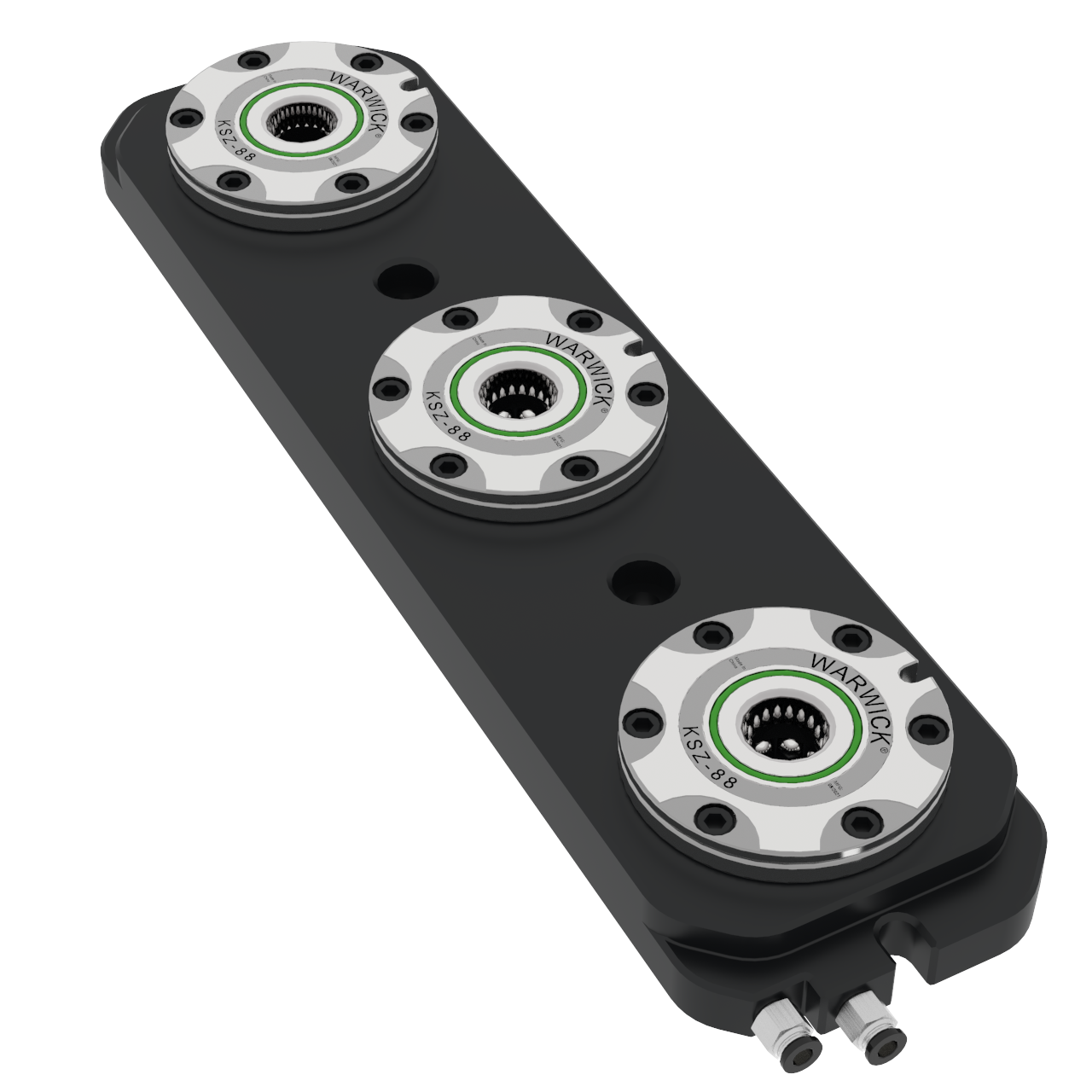

 | Can directly work with KSZ88 series zero point clamping system . | |

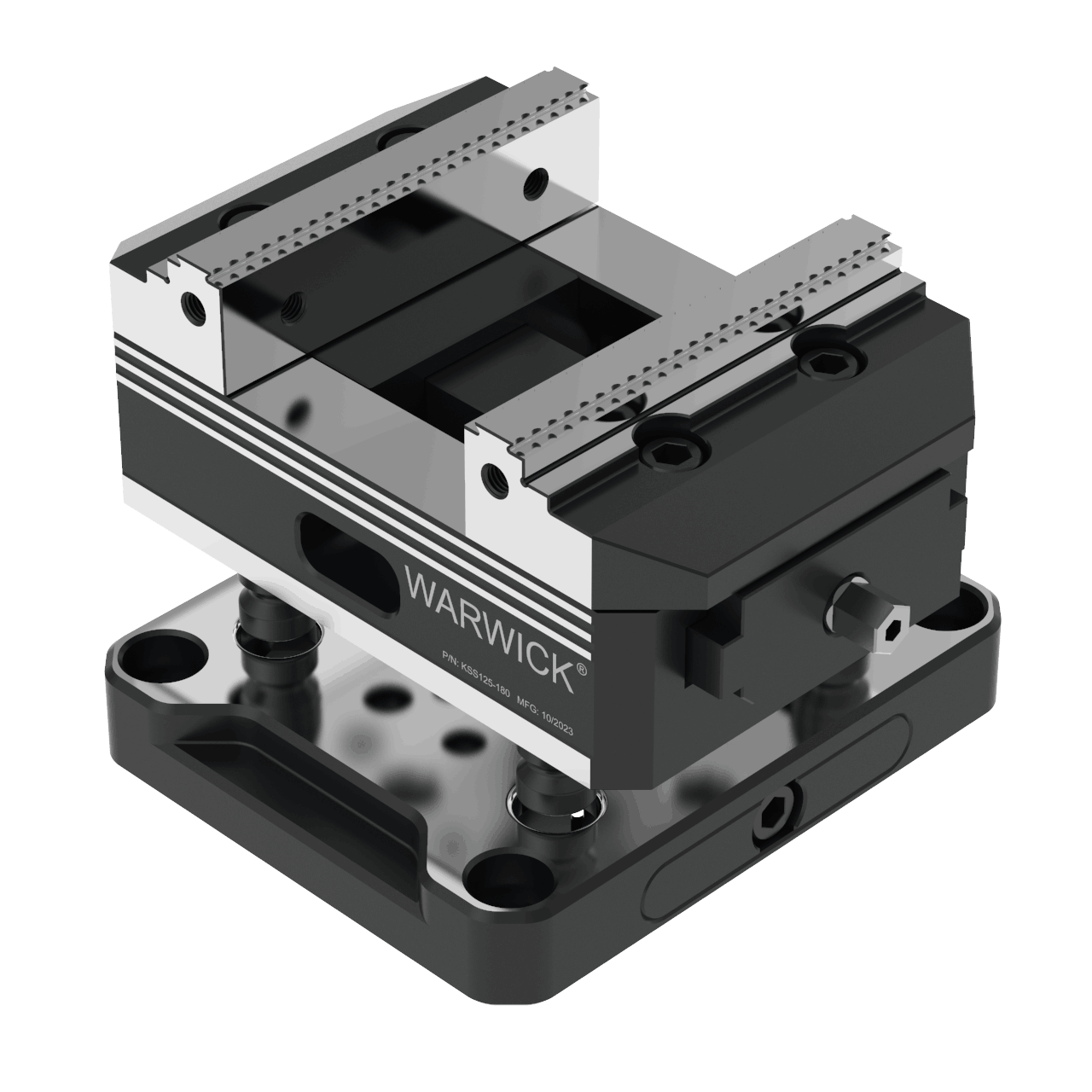

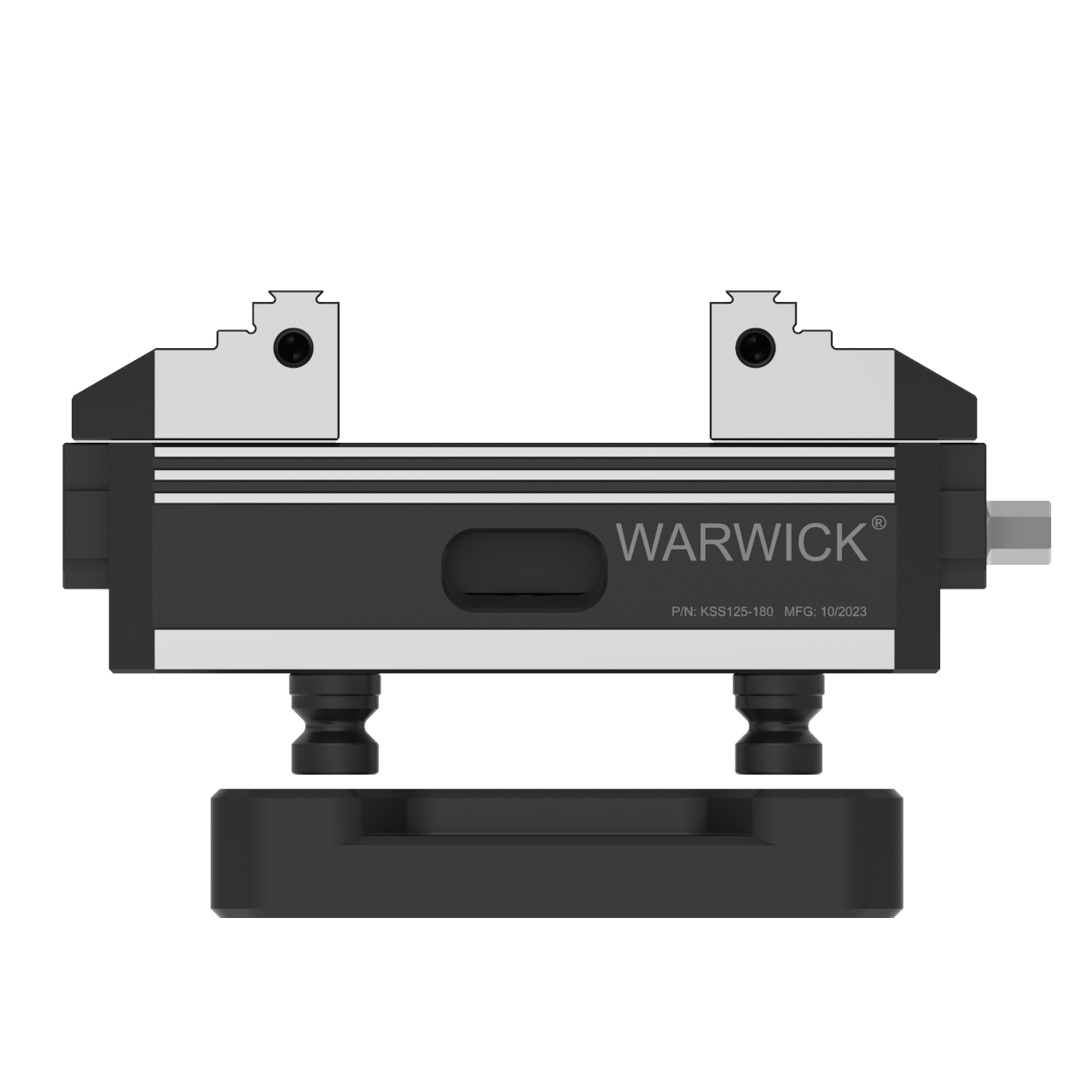

 | Integrated interface to the LANG zero positioning system |  |

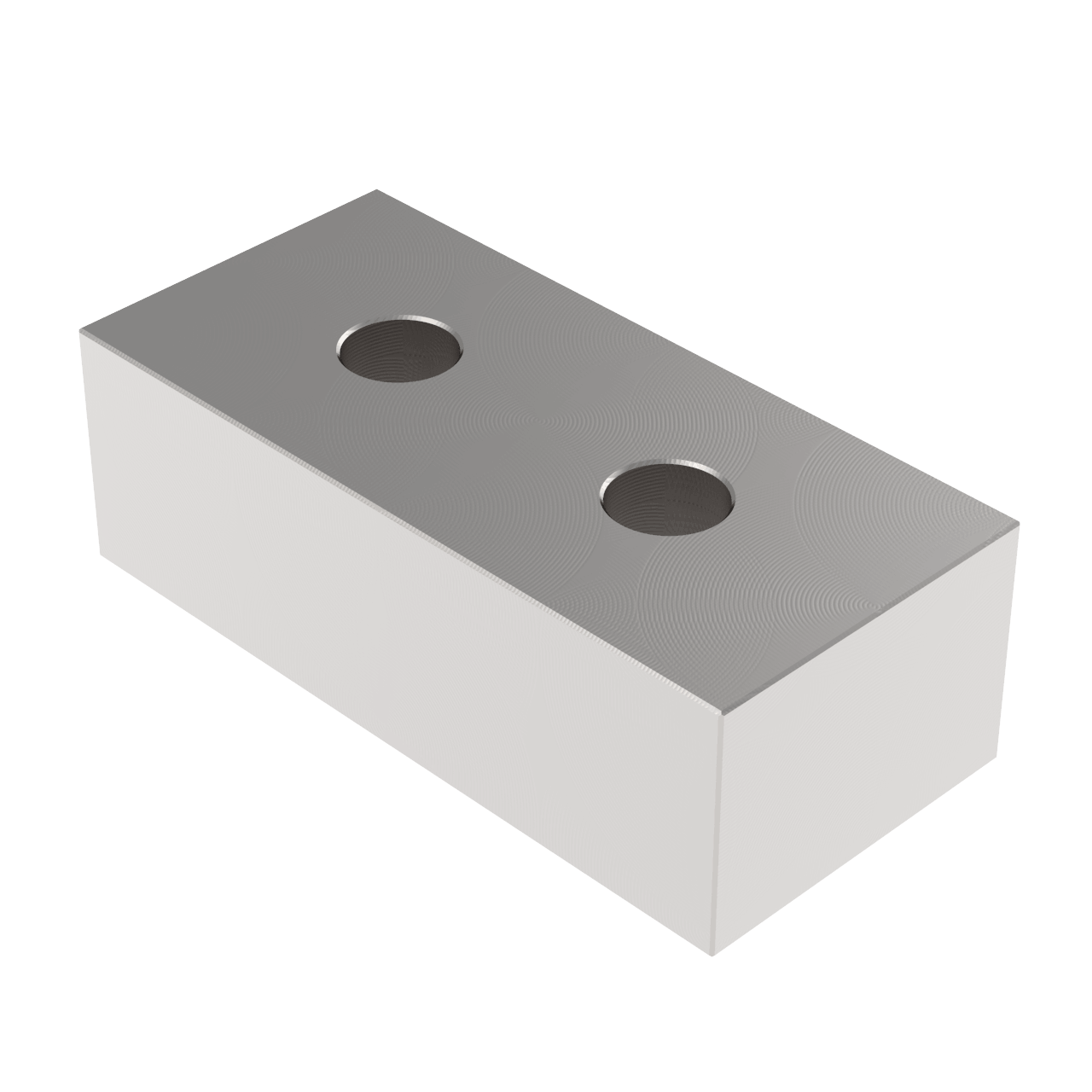

Accessories
