WARWICK workholding Simple, Cheap and Reliable
KSD88-650-4FD
Cheap-KSD

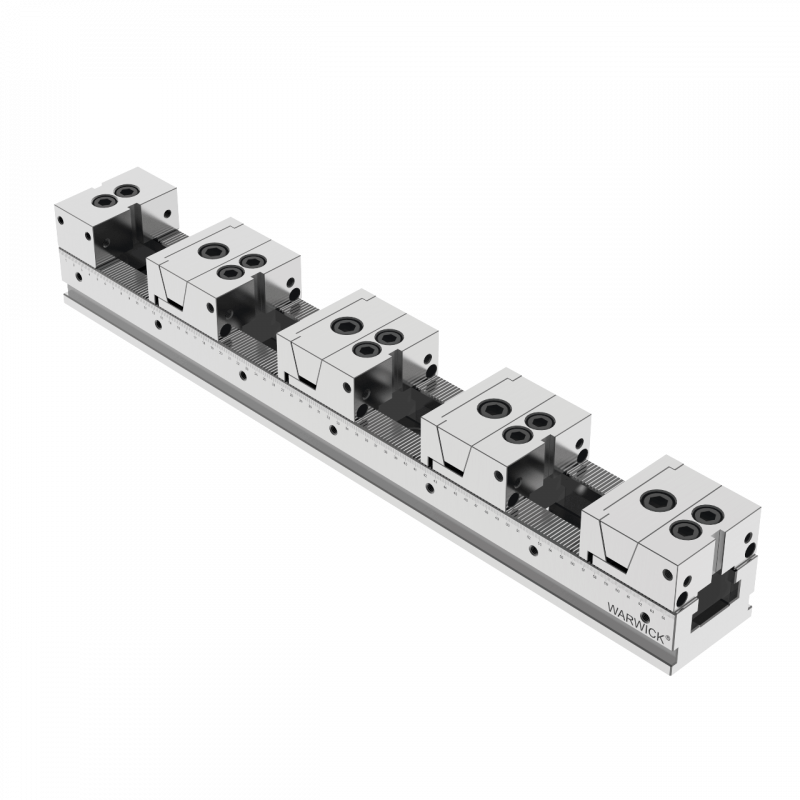

Multi-station vice
Grinding process, surface hardening treatment, extremely high position accuracy.
Applied to the SIMPLE-KSZ system, it will exhibit near-perfect exchange position accuracy.
Flexible adjustment range and high repeat position accuracy greatly reduce downtime and tool changes.
Product Information
Structural principle
Application
Accessories
Downloads
Product Information
| Description | ID | Rail width | Clamping force [kN] | Max. torque [N.m] | Weight [kg] |
| KSD88-650-FD | 21540-FD | 88 | 35.6 | 80 | 24.5 |
Drawing
| Notice: | – |
| Scope of delivery: | 1 x KSD88-650-FD |
| 1 x Wrench |
Structural principle
| 1.Hardened and ground serration |
| For maximum precision and form stability |
| 2.Clamping assembly |
| Optimal adjustment for new clamping tasks |
| 3.Fixed jaw can be turned 180° |
| High degree of flexibility |
| 4.High-strength clamping rails |
| Ensure the best production results |
| 5.SIMPLE-KSZ interface |
| Can be adapted to all SIMPLE-KSZ clamping stations |
| 6.Laser-etched ruler |
| For quick chuck jaw positioning |
Application
Clamping Capacity
The clamping range shows the max.
The maximum size of the workpiece that can be clamped-depends on the length of the guide rail and the number of clamping areas.
| Description | Number of workpieces clamped | |||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ||
| KSD88-400 | Maximum workpiece clamping size [mm] | 267 | 92 | 33 | ||||||
| KSD88-500 | 367 | 142 | 67 | 29 | ||||||
| KSD88-600 | 467 | 192 | 100 | 54 | 27 | |||||
| KSD88-650 | 517 | 217 | 117 | 67 | 37 | 17 | ||||
| KSD88-700 | 567 | 242 | 133 | 79 | 47 | 25 | 10 | |||
 |
According to the processing needs, the number of clamped products can be flexibly adjusted. |  |
 |
After installing the soft jaw, precision machining of special-shaped workpieces can be carried out |  |
 |
With KSZ series zero point positioning interface |  |
