WARWICK workholding Simple, Cheap and Reliable
KSD50-300-MD
Cheap-KSD

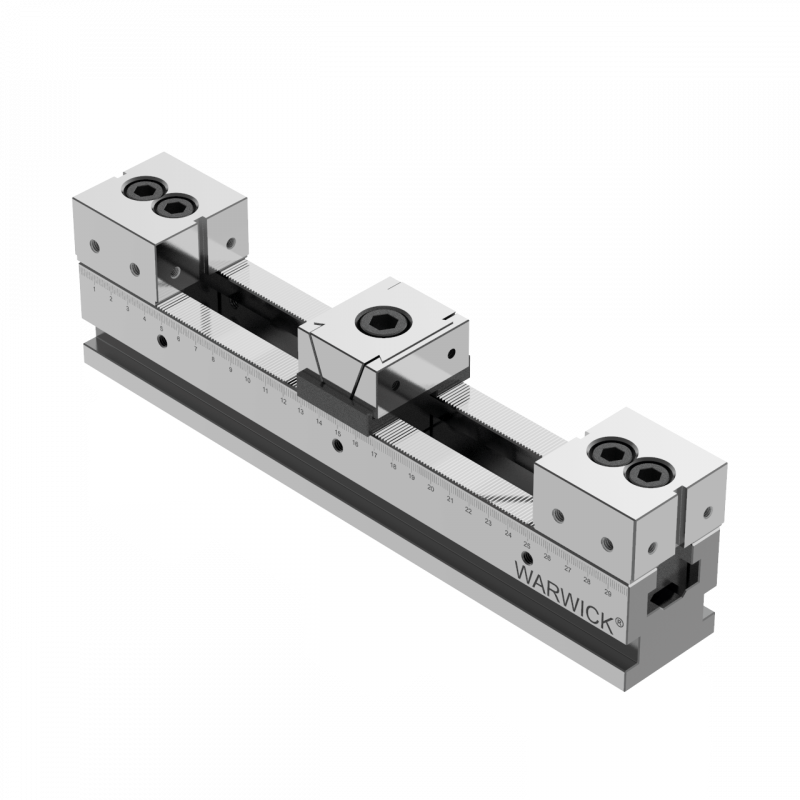

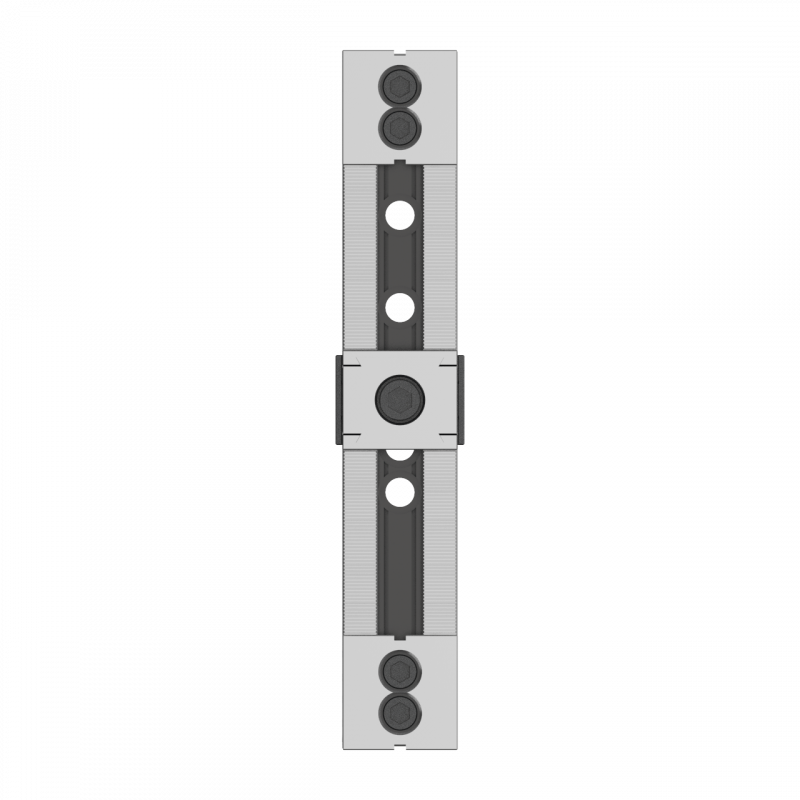

Multi-station vice
Grinding process, surface hardening treatment, extremely high position accuracy.
Applied to the SIMPLE-KSZ system, it will exhibit near-perfect exchange position accuracy.
Flexible adjustment range and high repeat position accuracy greatly reduce downtime and tool changes.
Product Information
Structural principle
Application
Accessories
Downloads

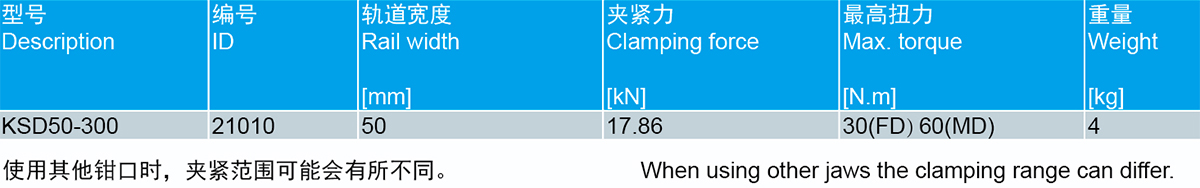

Product Information
| Notice: | – |
| Scope of delivery: | 1 x KSD50-300-MD |
| 1 x Wrench |

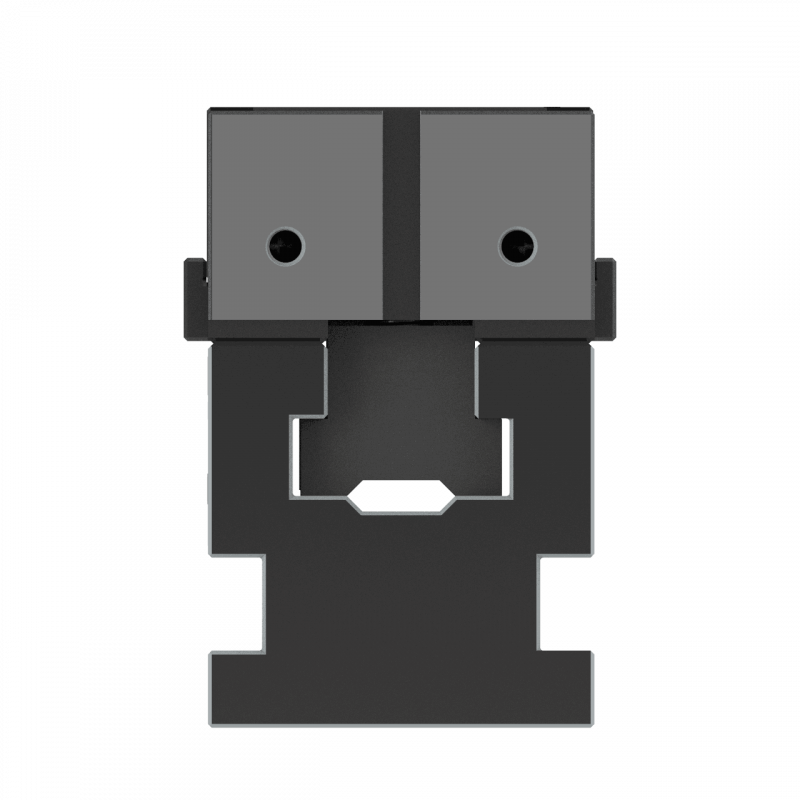

Structural principle
| 1.Hardened and ground serration |
| For maximum precision and form stability |
| 2.Clamping assembly |
| Optimal adjustment for new clamping tasks |
| 3.Fixed jaw can be turned 180° |
| High degree of flexibility |
| 4.High-strength clamping rails |
| Ensure the best production results |

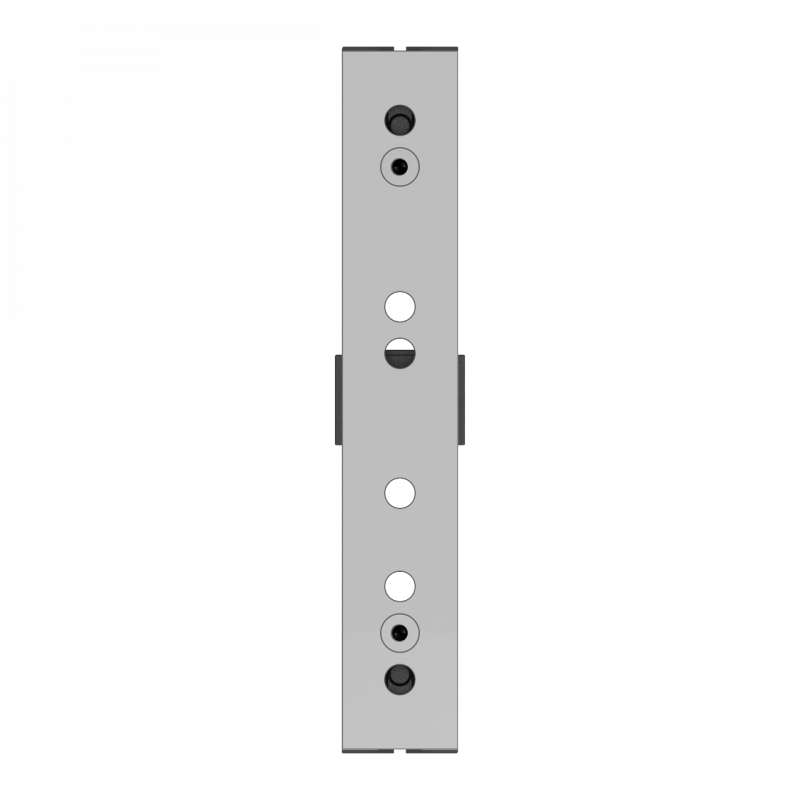

| 5.SIMPLE-KSZ interface |
| Can be adapted to all SIMPLE-KSZ clamping stations |

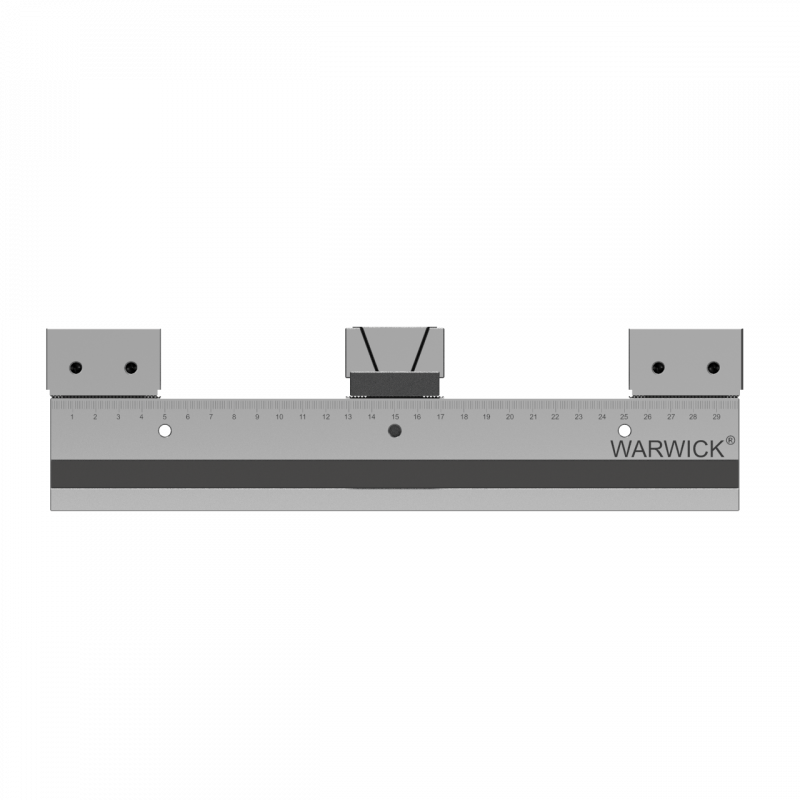

| 6.Laser-etched ruler |
| For quick chuck jaw positioning |
Application
Clamping Capacity
The clamping range shows the max.
The maximum size of the workpiece that can be clamped-depends on the length of the guide rail and the number of clamping areas.
| Description | Number of workpieces clamped | |||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ||
| KSD50-300 | Maximum workpiece clamping size [mm] | 192 | 67 | 25 | 4 | |||||
| KSD50-400 | 292 | 117 | 58 | 29 | 12 | |||||
| KSD50-500 | 392 | 167 | 92 | 54 | 32 | 17 | 6 | |||
| KSD50-600 | 492 | 217 | 125 | 79 | 52 | 33 | 20 | 10 | 3 | |
| KSD50-650 | 542 | 242 | 142 | 92 | 62 | 42 | 27 | 17 | 8 | |
 |
According to the processing needs, the number of clamped products can be flexibly adjusted. |  |
 |
After installing the soft jaw, precision machining of special-shaped workpieces can be carried out |  |
 |
With KSZ series zero point positioning interface |  |
Accessories
 |
 |
 |
| 50-FD | 50-FDT | 50-MD |
 |
 |
 |
| 50-MD | 50-GD | 50-DGT |
|
|
 |
| 50-RZ | 50-RZ-V | 50-RZ-H |
 |
 |
|
| 50-DP | 50-DW |
